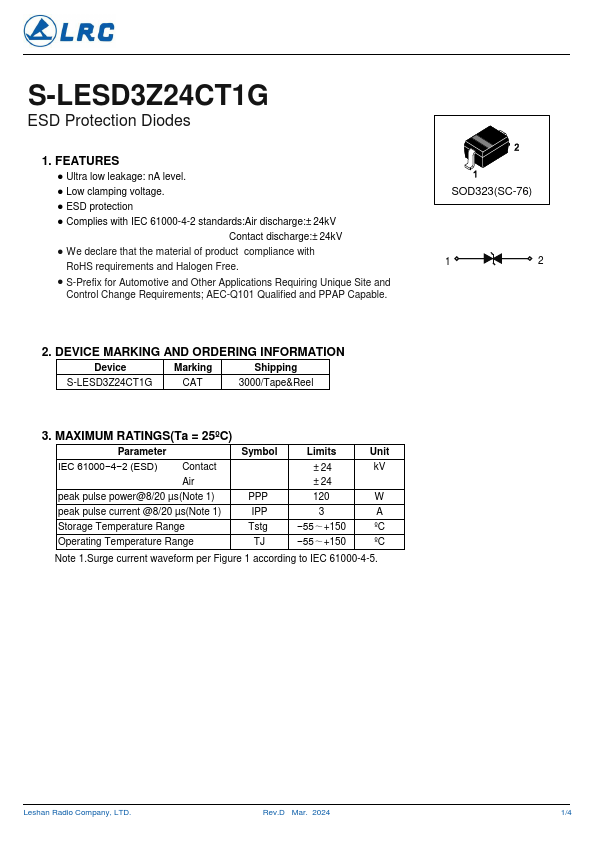

S-LESD3Z24CT1G
FEATURES
- Ultra low leakage: n A level.
- Low clamping voltage.
- ESD protection
- plies with IEC 61000-4-2 standards:Air discharge:±24k V
Contact discharge:±24k V
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S-Prefix for Automotive and Other Applications Requiring Unique Site and
Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
3000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol
Limits
Unit
IEC 61000- 4- 2 (ESD)
Contact Air
±24 k V
±24 peak pulse power@8/20 µs(Note 1)
W peak pulse current @8/20 µs(Note 1)
Storage Temperature Range
Tstg
- 55∼+150
ºC
Operating Temperature Range
- 55∼+150
ºC

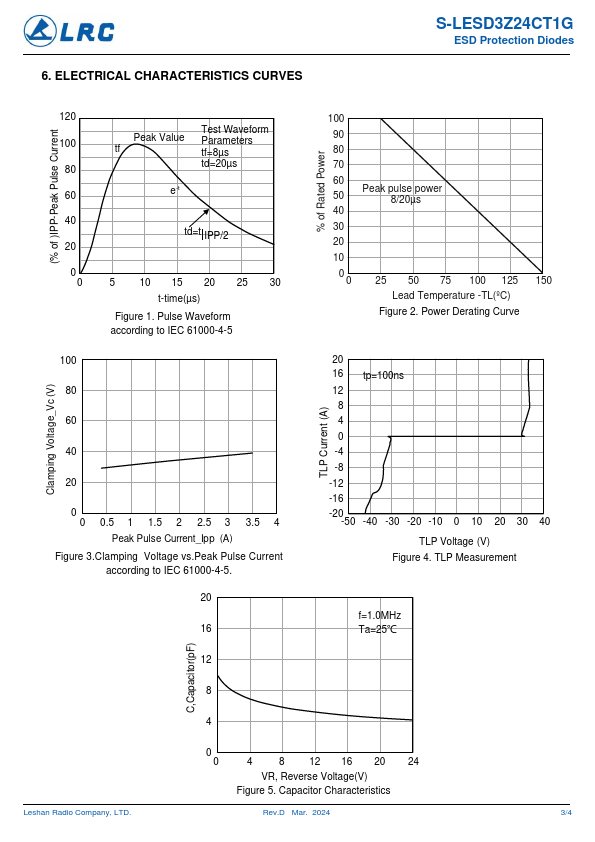

Note 1.Surge current waveform per Figure 1 according to IEC 61000-4-5.
SOD323(SC-76)
Leshan Radio pany,...
