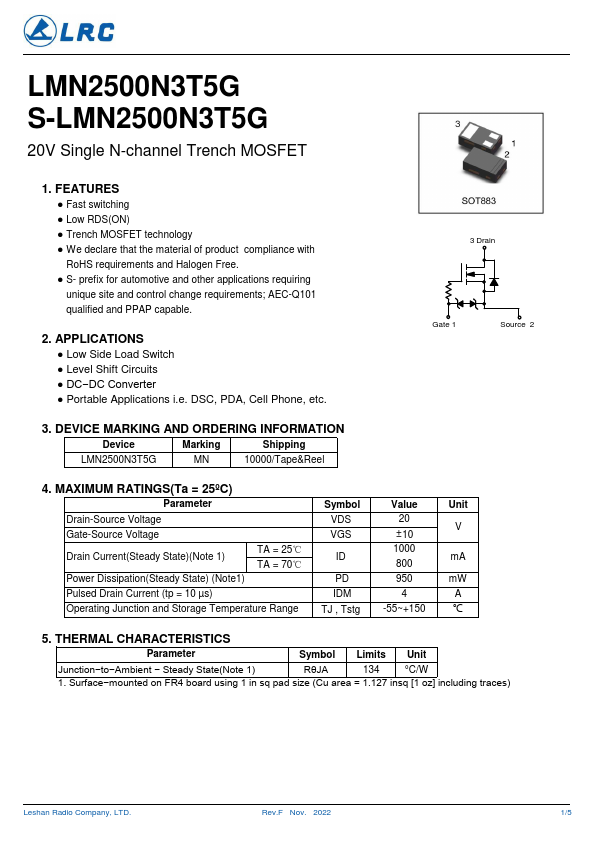

S-LMN2500N3T5G
FEATURES
- Fast switching
- Low RDS(ON)
- Trench MOSFET technology
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. APPLICATIONS
- Low Side Load Switch
- Level Shift Circuits
- DC- DC Converter
- Portable Applications i.e. DSC, PDA, Cell Phone, etc.
3 Drain
Gate 1
Source 2
3. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
LMN2500N3T5G
10000/Tape&Reel
4. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol
Value
Unit
Drain-Source Voltage Gate-Source Voltage
Drain Current(Steady State)(Note 1)
TA = 25℃ TA = 70℃
VDS VGS
20 V
±10 1000 m A 800
Power Dissipation(Steady State) (Note1)
950 m W
Pulsed Drain Current (tp = 10 µs)

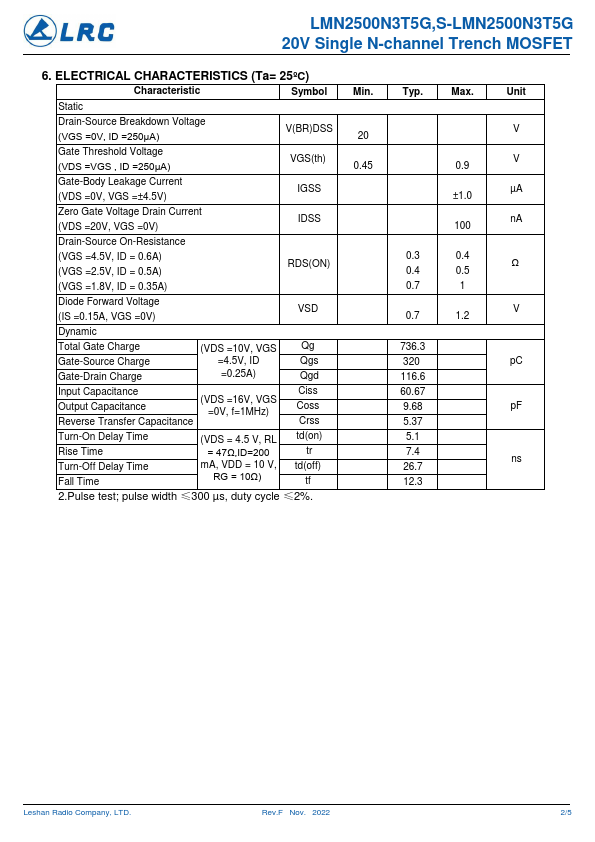

Operating Junction and Storage Temperature Range TJ , Tstg...
