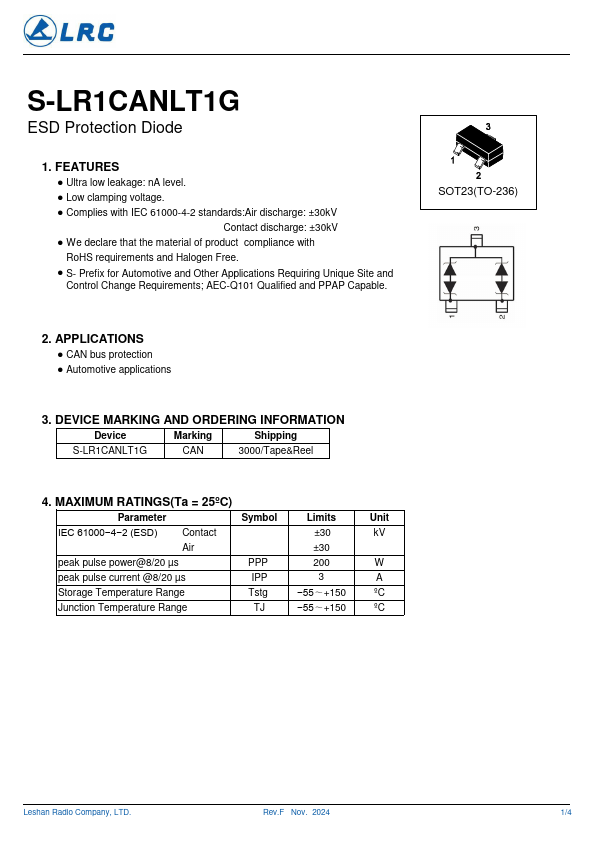

S-LR1CANLT1G
FEATURES
- Ultra low leakage: n A level.
- Low clamping voltage.
- plies with IEC 61000-4-2 standards:Air discharge: ±30k V
Contact discharge: ±30k V
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S- Prefix for Automotive and Other Applications Requiring Unique Site and
Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
SOT23(TO-236)
2. APPLICATIONS
- CAN bus protection
- Automotive applications
3. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
3000/Tape&Reel
4. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol
Limits
Unit
IEC 61000- 4- 2 (ESD) Contact
±30 k V
Air
±30 peak pulse power@8/20 µs
W peak pulse current @8/20 µs
Storage Temperature Range Junction Temperature Range
Tstg
- 55∼+150
ºC
- 55∼+150
ºC
Leshan Radio pany, LTD.
Rev.F Nov....
