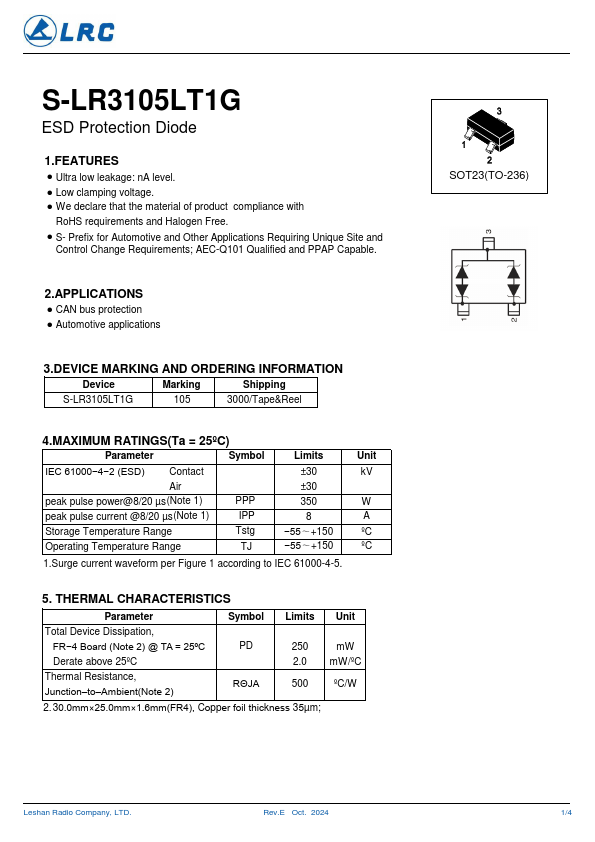

S-LR3105LT1G
FEATURES
- Ultra low leakage: n A level.
- Low clamping voltage.
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S- Prefix for Automotive and Other Applications Requiring Unique Site and
Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
2.APPLICATIONS
- CAN bus protection
- Automotive applications
3.DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
3000/Tape&Reel
4.MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol
Limits
Unit
IEC 61000- 4- 2 (ESD) Contact
±30 k V
Air
±30 peak pulse power@8/20 µs(Note 1)
W peak pulse current @8/20 µs(Note 1)
Storage Temperature Range
Tstg
- 55∼+150
ºC
Operating Temperature Range
- 55∼+150
ºC
1.Surge current waveform per Figure 1 according to IEC 61000-4-5.
5. THERMAL CHARACTERISTICS
Parameter
Symbol Limits Unit
Total Device...
