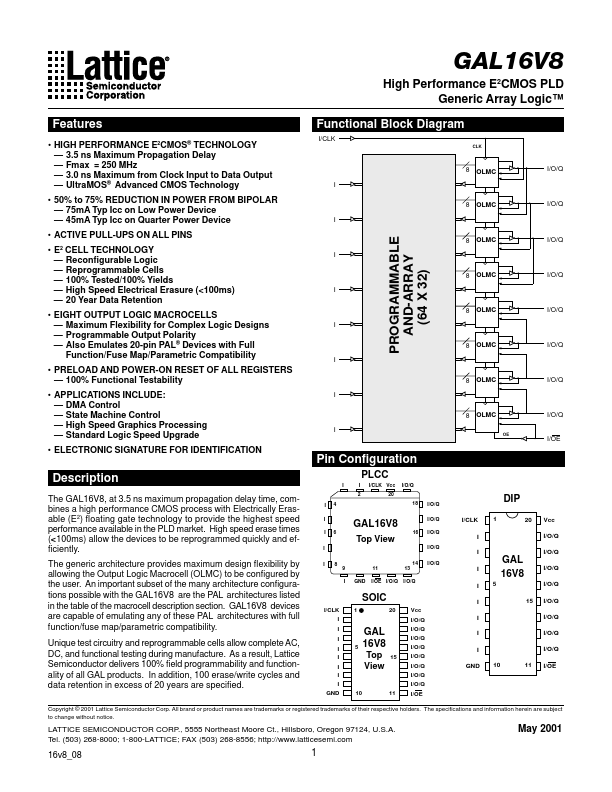

Lattice Semiconductor GAL16V8
High Performance E2CMOS PLD Generic Array Logic
| Part No. | GAL16V8 |
|---|---|
| Datasheet | GAL16V8 Download |
| Manufacturer |  Lattice Semiconductor |
| Description | High Performance E2CMOS PLD Generic Array Logic |
| Buy | Stock & Price |
FEATURES
● HIGH PERFORMANCE E2CMOS® TECHNOLOGY — 3.5 ns Maximum Propagation Delay — Fmax = 250 MHz — 3.0 ns Maximum from Clock Input to Data Output — UltraMOS® Advanced CMOS Technology● 50% to 75% REDUCTION IN POWER FROM BIPOLAR — 75mA Typ Icc on Low Power Device — 45mA Typ Icc on Quarter Power Device
● ACTIVE PULL-UPS ON ALL PINS
● E2 CELL TECHNOLOGY — Reconfigurable Logic — Reprogrammable Cells — 100% Tested/100% Yields — High Speed Electrical Erasure (<100ms) — 20 Year Data Retention
● EIGHT OUTPUT LOGIC MACROCELLS — Maximum Flexibility for Complex Logic Designs — Programmable Output Polarity — Also Emulates 20-pin PAL® Devices with Full Function/Fuse Map/Parametric Compatibility
● PRELOAD AND POWER-ON RESET OF ALL REGISTERS — 100% Functional Testability
●
APPLICATIONS
INCLUDE: — DMA Control — State Machine Control — High Speed Graphics Processing — Standard Logic Speed Upgrade● ELECTRONIC SIGNATURE FOR IDENTIFICATION
DESCRIPTION
The GAL16V8, at 3.5 ns maximum propagation delay ti...
