LBAV99LT1G - Dual Series Switching Diode

📥 Download Datasheet

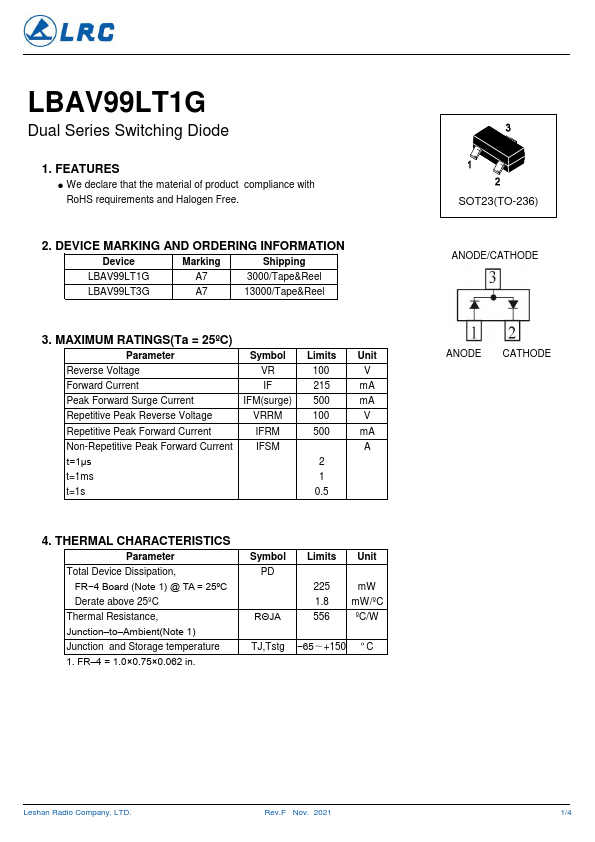

Datasheet preview – LBAV99LT1G

Datasheet Details

Part number LBAV99LT1G
Manufacturer Leshan Radio Company
File Size 79.57 KB
Description Dual Series Switching Diode
Datasheet download datasheet LBAV99LT1G Datasheet

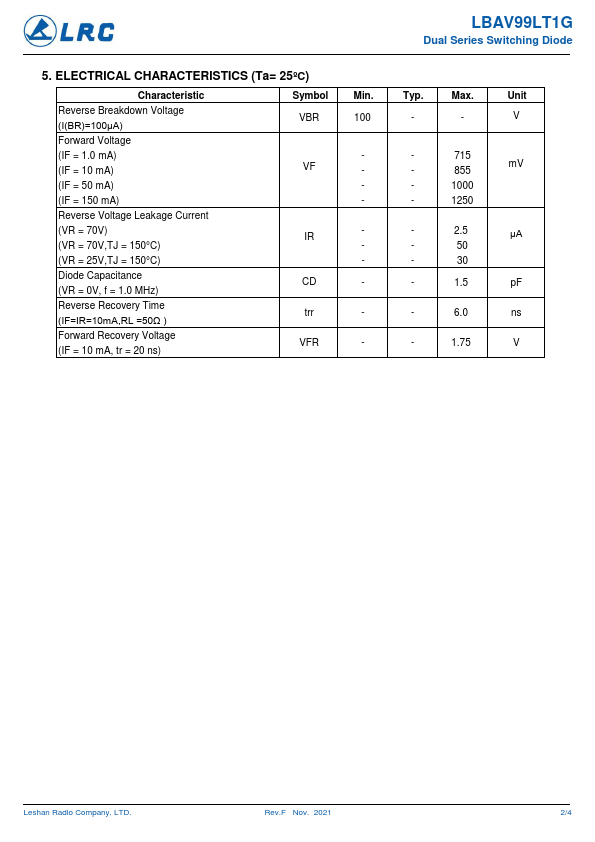

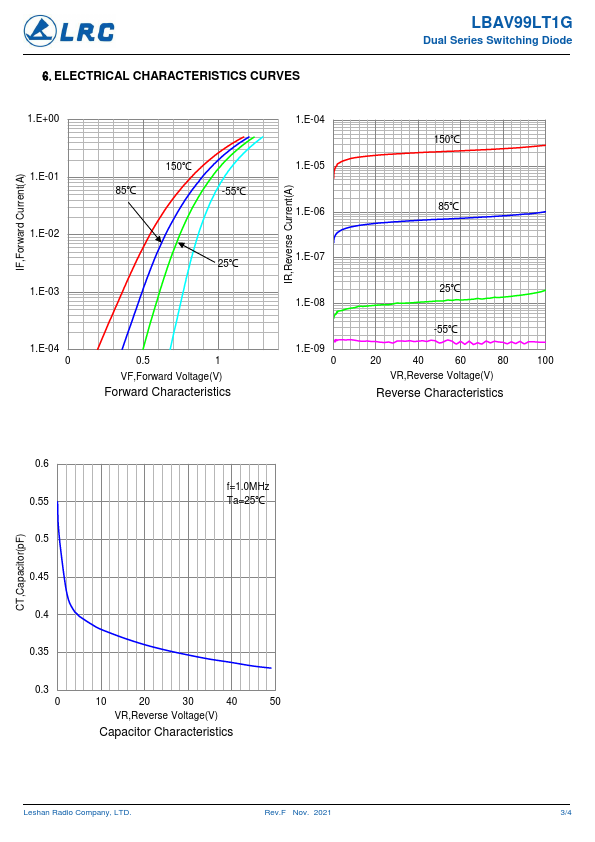

Additional preview pages of the LBAV99LT1G datasheet.

📁 Similar Datasheet

  • LBA060 - (LBA060 - LBA140) High Power Laser Bar Array (Bookham Technology)
  • LBA110 - DUAL POLE OptoMOS Relay (Clare)
  • LBA110 - Dual Pole OptoMOS Relay (IXYS)
  • LBA110L - DUAL POLE OptoMOS Relay (Clare)
  • LBA110L - Combination OptoMOS Relay (IXYS)
  • LBA120 - Single Pole OptoMOS Relay (Clare)
  • LBA120 - (LBA060 - LBA140) High Power Laser Bar Array (Bookham Technology)
  • LBA120 - Dual Single-Pole OptoMOS Relay (IXYS)
  • LBA120L - Single Pole OptoMOS Relay (Clare)
  • LBA120L - Dual Single-Pole OptoMOS Relay (IXYS)
Other Datasheets by Leshan Radio Company

Full PDF Text Transcription

Click to expand full text
LESHAN RADIO COMPANY, LTD. Dual Series Switching Diode • We declare that the material of product compliance with RoHS requirements. • S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. . LBAV99LT1G S-LBAV99LT1G 3 1 2 SOT–23 DEVICE MARKING ORDERING INFORMATION 1 ANODE 3 CAHODE/ANODE 2 CATHODE Device Marking Shipping LBAV99LT1G S-LBAV99LT1G LBAV99LT3G S-LBAV99LT3G A7 A7 3000 Tape & Reel 10000 Tape & Reel MAXIMUM RATINGS (EACH DIODE) Rating Reverse Voltage Forward Current Peak Forward Surge Current Repetitive Peak Reverse Voltage Average Rectified Forward Current (1) (averaged over any 20 ms period) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current t = 1.0 µ s t = 1.
