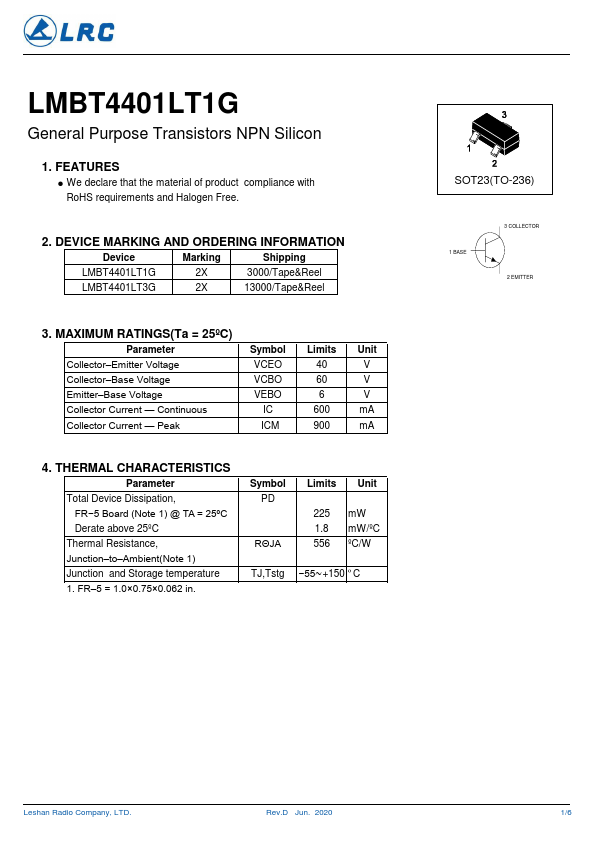

Datasheet Summary
General Purpose Transistors NPN Silicon
1. Features
- We declare that the material of product pliance with RoHS requirements and Halogen Free.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
2X
3000/Tape&Reel
LMBT4401LT3G
2X
13000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol Limits Unit
Collector- Emitter Voltage
VCEO
Collector- Base Voltage
VCBO
Emitter- Base Voltage
VEBO
Collector Current
- Continuous
600 mA
Collector Current
- Peak
900 mA
4. THERMAL CHARACTERISTICS
Parameter Total Device Dissipation,
FR- 5 Board (Note 1) @ TA = 25ºC Derate above 25ºC Thermal Resistance, Junction-...
