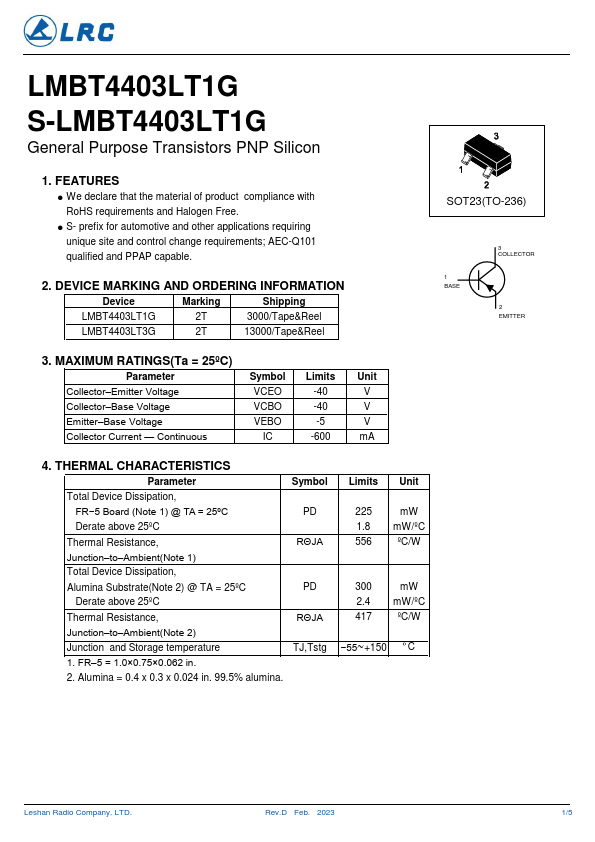

Datasheet Summary
S-LMBT4403LT1G
General Purpose Transistors PNP Silicon
1. Features
- We declare that the material of product pliance with RoHS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
2T
3000/Tape&Reel
LMBT4403LT3G
2T
13000/Tape&Reel
SOT23(TO-236)
1 BASE
3 COLLECTOR
2 EMITTER
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol Limits Unit
Collector- Emitter Voltage
VCEO
-40
Collector- Base Voltage
VCBO
-40
Emitter- Base Voltage
VEBO
-5...
