OFA-TCX-17AP Datasheet | LiComm

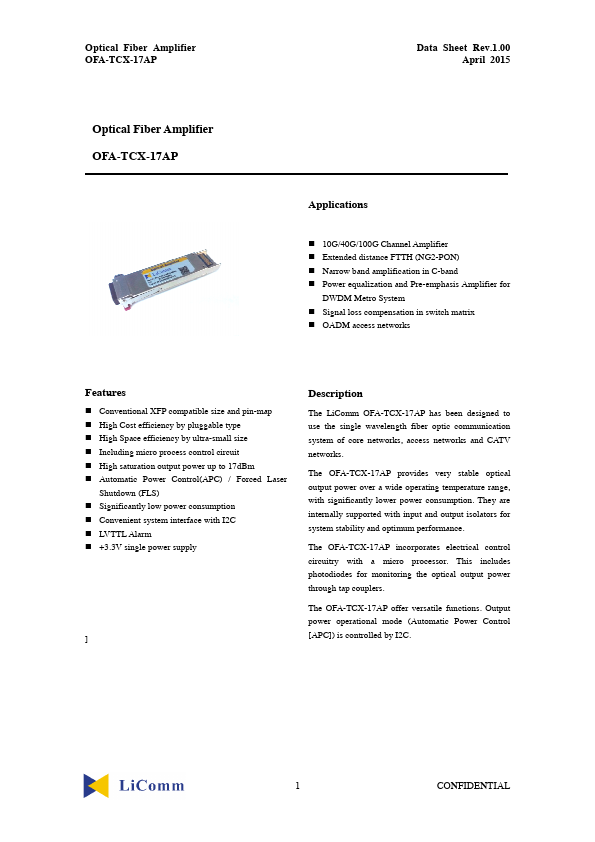

Optical Fiber Amplifier OFA-TCX-17AP Data Sheet Rev.1.00 April 2015 Optical Fiber Amplifier OFA-TCX-17AP Applications ! 10G/40G/100G Channel Amplifier ! Extended distance FTTH (NG2-PON) ! Narrow band amplification in C-band ! Power equalization and Pre-emphasis Amplifier for DWDM Metro System ! Signal loss pensation in switch matrix ! OADM access networks Features ! Conventional XFP patible size and pin-map ! High Cost efficiency by pluggable type ! High Space efficiency by ultra-small size ! Including micro process control circuit ! High saturation output power up to 17dBm ! Automatic Power Control(APC) / Forced Laser Shutdown (FLS) ! Significantly low power consumption !...
