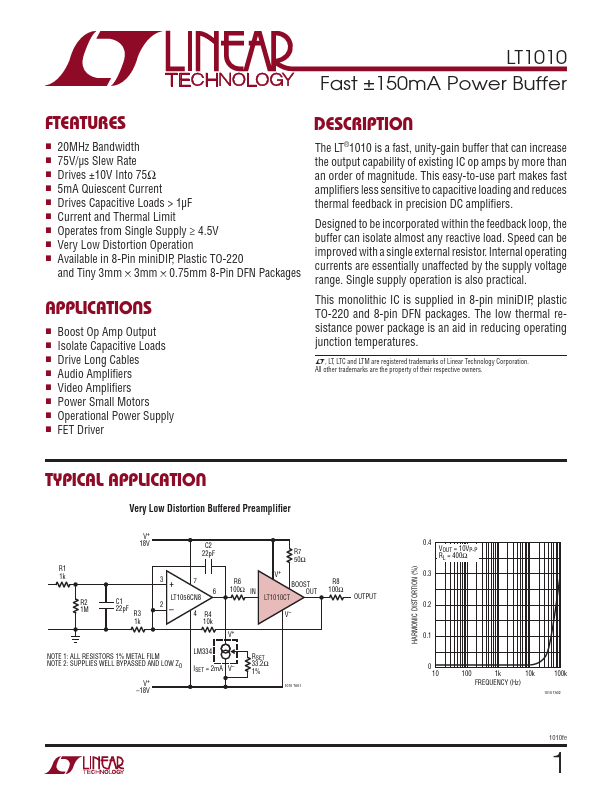

Datasheet Summary
LT1010 Fast ±150mA Power Buffer
FTEATURES
DESCRIPTION n 20MHz Bandwidth n 75V/µs Slew Rate n Drives ±10V Into 75Ω n 5mA Quiescent Current n Drives Capacitive Loads > 1µF n Current and Thermal Limit n Operates from Single Supply ≥ 4.5V n Very Low Distortion Operation n Available in 8-Pin miniDIP, Plastic TO-220 and Tiny 3mm × 3mm × 0.75mm 8-Pin DFN Packages
The LT®1010 is a fast, unity-gain buffer that can increase the output capability of existing IC op amps by more than an order of magnitude. This easy-to-use part makes fast amplifiers less sensitive to capacitive loading and reduces thermal feedback in precision DC amplifiers.
Designed to be incorporated within the feedback loop, the...
