LT3511 - Monolithic High Voltage Isolated Flyback Converter

General Description

The LT®3511 is a high voltage monolithic switching regulator specifically designed for the isolated flyback topology.

No third winding or opto-isolator is required for regulation as the part senses output voltage directly from the primary-side flyback waveform.

Key Features

  • n 4.5V to 100V Input Voltage Range n Internal 240mA, 150V Power Switch n Boundary Mode Operation n No Transformer Third Winding or Opto-Isolator Required for Regulation n Improved Primary-Side Winding Feedback Load Regulation n VOUT Set with Two External Resistors n BIAS Pin for Internal Bias Supply and Power Switch Driver n No External Start-Up Resistor n 16-Lead MSOP Package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LT3514 Triple Step-Down Switching Regulator Linear
LT3519-1 LED Driver Linear
LT3519-2 LED Driver Linear
LT35 projector NEC
LT3504 Quad 40V/1A Step-Down Switching Regulator Linear

Other Datasheets by Linear Technology (now Analog Devices)

Part Number Description
LT3510 Monolithic Dual Tracking 2A Step-Down Switching Regulator
LT3512 Monolithic High Voltage Isolated Flyback Converter
LT3513 2MHz High Current 5-Output Regulator
LT3517 Full-Featured LED Driver
LT3518 Full-Featured LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

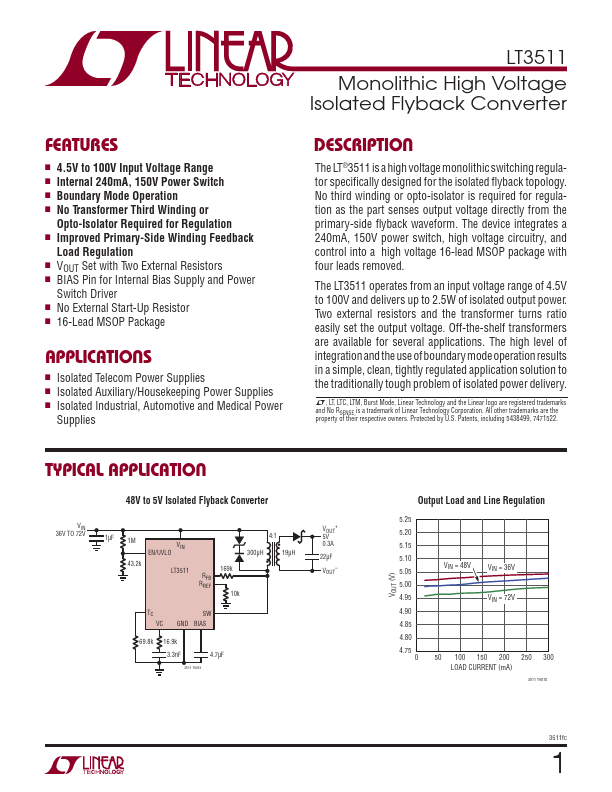

LT3511 Monolithic High Voltage Isolated Flyback Converter FEATURES n 4.5V to 100V Input Voltage Range n Internal 240mA, 150V Power Switch n Boundary Mode Operation n No Transformer Third Winding or Opto-Isolator Required for Regulation n Improved Primary-Side Winding Feedback Load Regulation n VOUT Set with Two External Resistors n BIAS Pin for Internal Bias Supply and Power Switch Driver n No External Start-Up Resistor n 16-Lead MSOP Package APPLICATIONS n Isolated Telecom Power Supplies n Isolated Auxiliary/Housekeeping Power Supplies n Isolated Industrial, Automotive and Medical Power Supplies DESCRIPTION The LT®3511 is a high voltage monolithic switching regulator specifically designed for the isolated flyback topology.
