LTC4125 Datasheet 5w Autoresonant Wireless Power Transmitter

Manufacturer: Linear Technology (now Analog Devices)

Overview: LTC4125 5W AutoResonant Wireless Power Transmitter.

General Description

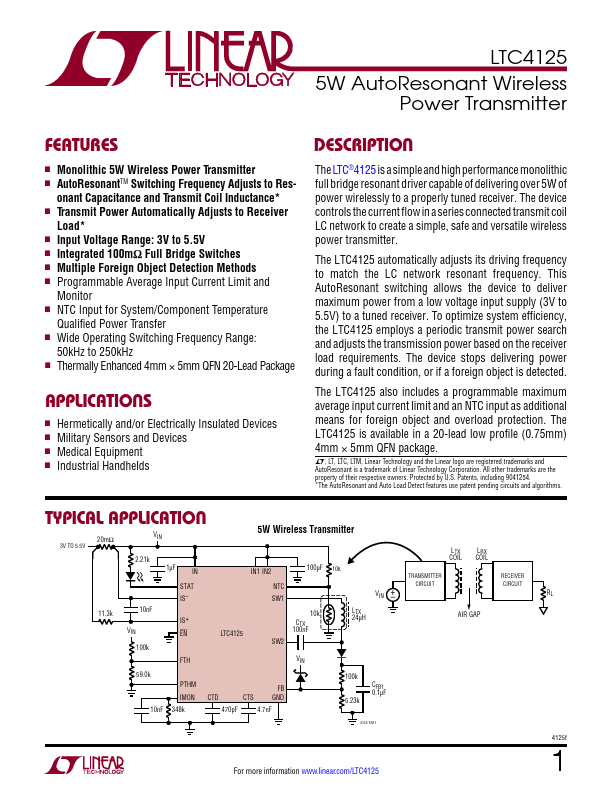

The LTC®4125 is a simple and high performance monolithic full bridge resonant driver capable of delivering over 5W of power wirelessly to a properly tuned receiver.

The device controls the current flow in a series connected transmit coil LC network to create a simple, safe and versatile wireless power transmitter.

The LTC4125 automatically adjusts its driving frequency to match the LC network resonant frequency.

Key Features

  • nn Monolithic 5W Wireless Power Transmitter nn AutoResonantTM Switching Frequency Adjusts to Res- onant Capacitance and Transmit Coil Inductance.
  • nn Transmit Power Automatically Adjusts to Receiver Load.

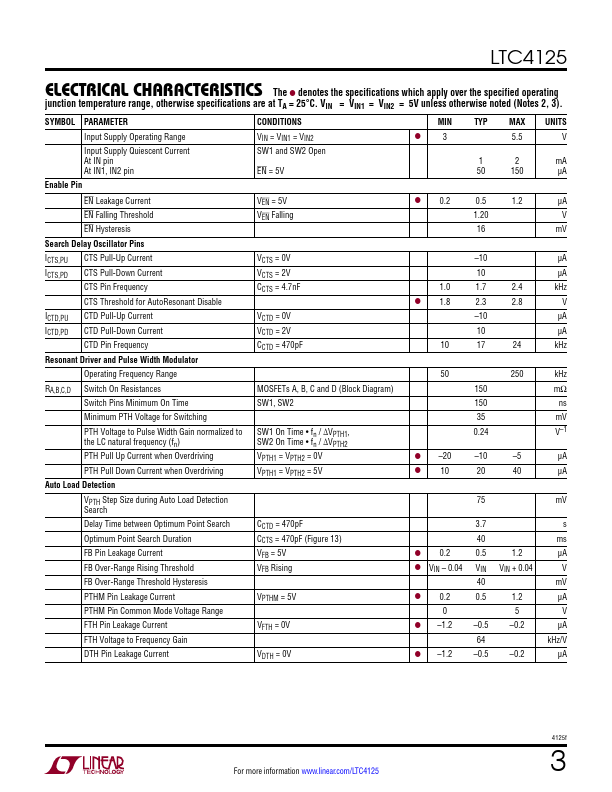

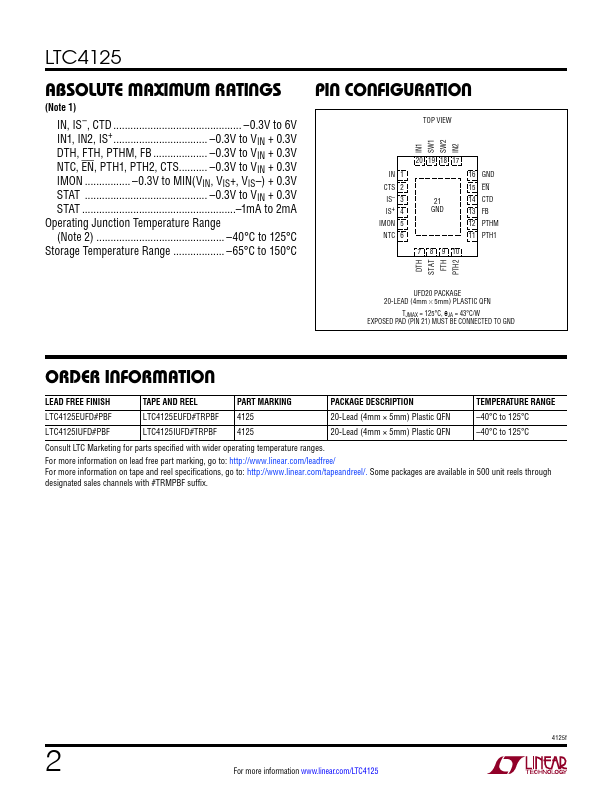

  • nn Input Voltage Range: 3V to 5.5V nn Integrated 100mΩ Full Bridge Switches nn Multiple Foreign Object Detection Methods nn Programmable Average Input Current Limit and Monitor nn NTC Input for System/Component Temperature Qualified Power Transfer nn Wide Operating Switching Frequency Ra.
