LTV-827
LTV-827 is High Density Mounting Type Photocoupler manufactured by LITEON.
- Part of the LTV817_Lite comparator family.
- Part of the LTV817_Lite comparator family.
DESCRIPTION
1.1 Features
Current transfer ratio ( CTR : MIN. 50% at IF = 5m A, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2m A, RL = 100Ω ) Dual-in-line package : LTV-817 : 1-channel type
LTV-827 : 2-channel type
LTV-847 : 4-channel type Wide lead spacing package : LTV-817M : 1-channel type
LTV-827M : 2-channel type
LTV-847M : 4-channel type Surface mounting package : LTV-817S : 1-channel type
LTV-827S : 2-channel type
LTV-847S : 4-channel type Tape and reel packaging : LTV-817S-TA : 1-channel type
LTV-817S-T...

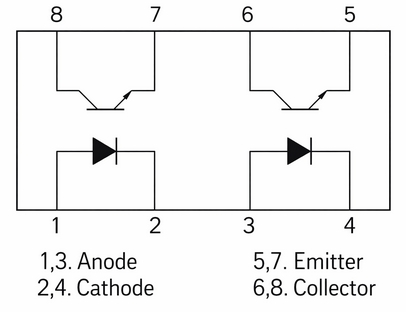

Representative LTV-827 image (package may vary by manufacturer)
