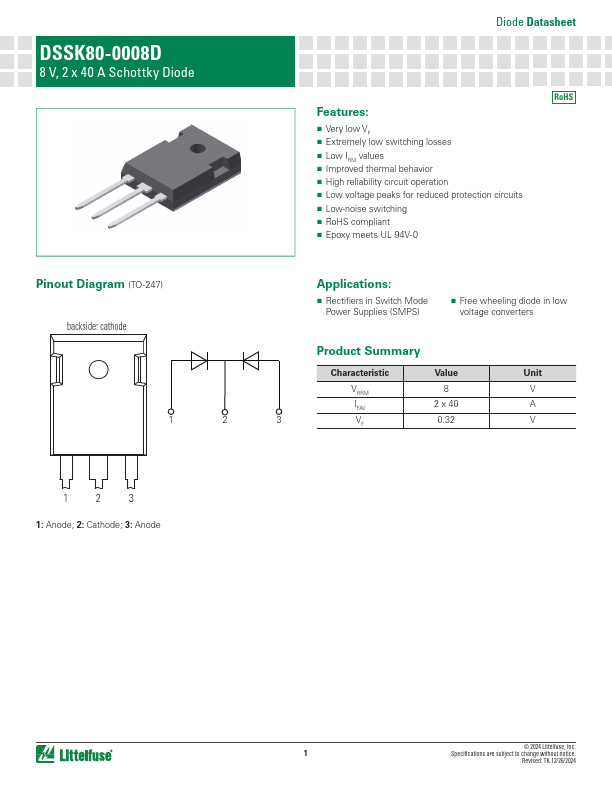

DSSK80-0008D
DSSK80-0008D is 2 x 40A Schottky Diode manufactured by Littelfuse.
Features
:
- Very low VF
- Extremely low switching losses
- Low IRM values
- Improved thermal behavior
- High reliability circuit operation
- Low voltage peaks for reduced protection circuits
- Low-noise switching
- Ro HS pliant
- Epoxy meets UL 94V-0
Ro HS
Applications:
- Rectifiers in Switch Mode Power Supplies (SMPS)
- Free wheeling diode in low voltage converters
Product Summary
Characteristic
Value
VRRM
IFAV
2 x 40
Unit V A V
1: Anode; 2: Cathode; 3: Anode
© 2024 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: TK.12/26/2024
Maximum Ratings
Symbol V
VRRM
Characteristics Maximum Non-repetitive Reverse Blocking Voltage
Maximum Repetitive Reverse Blocking Voltage
Reverse Current
IF(AV)...
