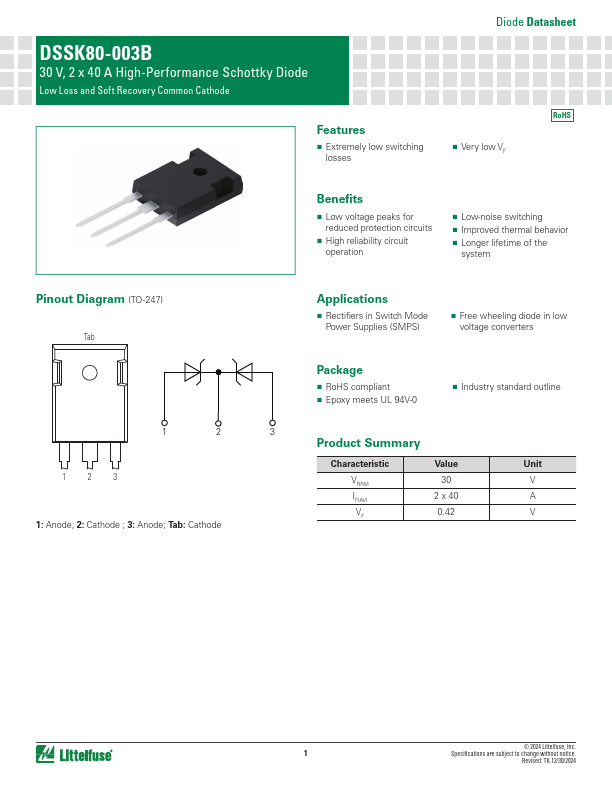

DSSK80-003B
DSSK80-003B is 2 x 40A High-Performance Schottky Diode manufactured by Littelfuse.
Features
- Extremely low switching losses
Diode Datasheet
- Very low VF
Ro HS
Benefits
- Low voltage peaks for reduced protection circuits
- High reliability circuit operation
- Low-noise switching
- Improved thermal behavior
- Longer lifetime of the system
Pinout Diagram (TO-247)
Tab
1: Anode; 2: Cathode ; 3: Anode; Tab: Cathode
Applications
- Rectifiers in Switch Mode Power Supplies (SMPS)
- Free wheeling diode in low voltage converters
Package
- Ro HS pliant
- Epoxy meets UL 94V-0
- Industry standard outline
Product Summary
Characteristic
VRRM IF(AV) VF
Value 30
2 x 40 0.42
Unit V A V
© 2024 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: TK.12/30/2024
Maximum Ratings
Symbol...
