Lontium LT9211
LT9211 is a high performance convertor which interconvertible between MIPI DSI/CSI-2/Dual-Port LVDS and TTL except for TTL to TTL. The LT9211 deserializes input MIPI/LVDS/TTL video data, decodes packets, and converts the formatted video data stream to MIPI/LVDS/TTL transmitter output between AP and mobile display panel or camera. The LT9211 can be used as 2-Port MIPI/LVDS Repeater which support maximum 14dB input equalization and programmable pre-emphasis to improve performance.| Part No. | LT9211 |
|---|---|
| Datasheet | LT9211 Download |
| Manufacturer | Lontium |
| Description | 2-Port LVDS/MIPI/TTL to 2-Port LVDS/MIPI/TTL Converter |
| Buy | Stock & Price |

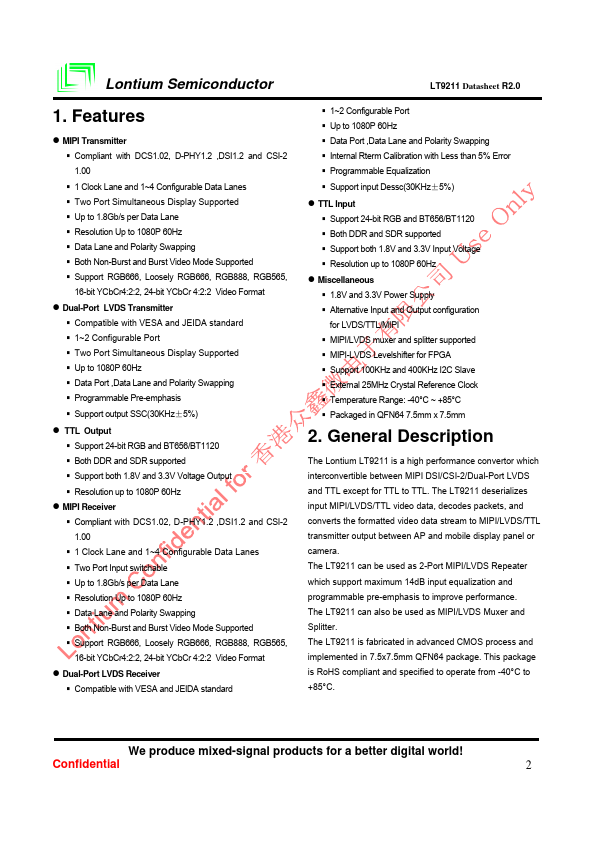

FEATURES
● MIPI Transmitter● Compliant with DCS1.02, D-PHY1.2 ,DSI1.2 and CSI-2 1.00
● 1 Clock Lane and 1~4 Configurable Data Lanes
● Two Port Simultaneous Display Supported
● Up to 1.8Gb/s per Data Lane
● Resolution Up to 1080P 60Hz
● Data Lane and Polarity Swapping
● Both Non-Burst and Burst Video Mode Supported
● Support RGB666, Loosely RGB666, RGB888, RGB565, 16-bit YCbCr4:2:2, 24-bit YCbCr 4:2:2 Video Format
● Dual-Port LVDS Transmitter
● Compatible with VESA and JEIDA standard
● 1~2 Configurable Port
● Two Port Simultaneous Display Supported
● Up to 1080P 60Hz
● Data Port ,Data Lane and Polarity Swapping
● Programmable Pre-emphasis
● Support output SSC(30KHz±5%)
● TTL Output
● Support 24-bit RGB and BT656/BT1120
● Both DDR and SDR supported
● Support both 1.8V and 3.3V Voltage Output
● Resolution up to 1080P 60Hz
● MIPI Receiver
● Compliant with DCS1.02, D-PHY1.2 ,DSI1.2 and CSI-2 1.00
● 1 Clock Lane and 1~4 Configurable Data Lanes
● Two Port Input switchable
● Up to 1.8Gb/s per...
