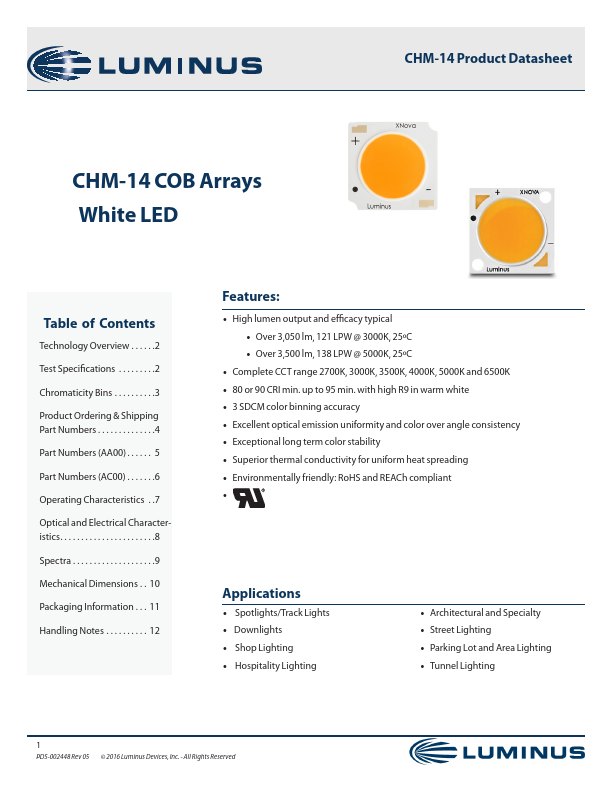

Overview - . 2 Test Specifications - . . . . 2 Chromaticity Bins- - 3 Product Ordering & Shipping Part Numbers- - . . . . 4 Part Numbers (AA00)- . . 5 Part Numbers (AC00)- . . 6 Operating Characteristics . . 7 Optical and Electrical Characteristics- - - - . . . 8 Spectra- - - - 9 Mechanical Dimensions. . . 10 Packaging Information. . . . 11 Handling Notes- - . 12 Features : - High lumen output and efficacy typical - Over 3,050 lm, 121 LPW @ 3000K, 25ºC - Over 3,500 lm, 138 LPW @ 5000K, 25ºC - plete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K - 80 or 90 CRI min. up to 95 min. with high R9 in warm white - 3 SDCM color binning accuracy - Excellent optical emission uniformity and color over angle consistency - Exceptional long term color stability - Superior thermal conductivity for uniform heat spreading - Environmentally friendly: Ro HS and REACh pliant - Applications - Spotlights/Track Lights - Downlights - Shop Lighting - Hospitality Lighting - Architectural and Specialty - Street Lighting - Parking Lot and Area Lighting - Tunnel Lighting PDS-002448 Rev 05 © 2016 Luminus Devices, Inc. - All Rights Reserved CHM-14 Product Datasheet Technology Overview Luminus Chip-on-Board (COB) LED series offers a plete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95. These breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality. Reliability Designed from the ground up, the Luminus COB LED is one of the most reliable light sources in the world today. Having passed a rigorous suite of environmental and mechanical stress...
