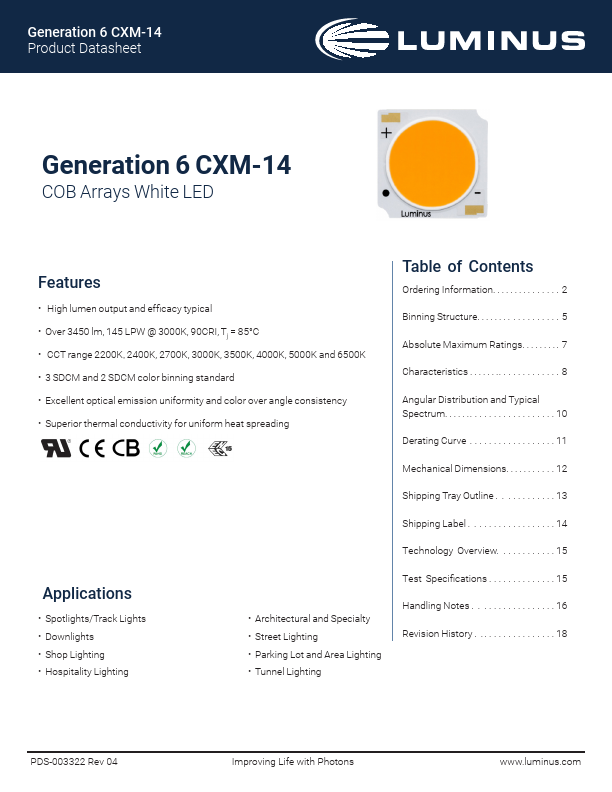

CXM-14
CXM-14 is COB Arrays White LED manufactured by Luminus.
Features
- High lumen output and efficacy typical
- Over 3450 lm, 145 LPW @ 3000K, 90CRI, Tj = 85°C
- CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
- 3 SDCM and 2 SDCM color binning standard
- Excellent optical emission uniformity and color over angle consistency
- Superior thermal conductivity for uniform heat spreading
Table of Contents

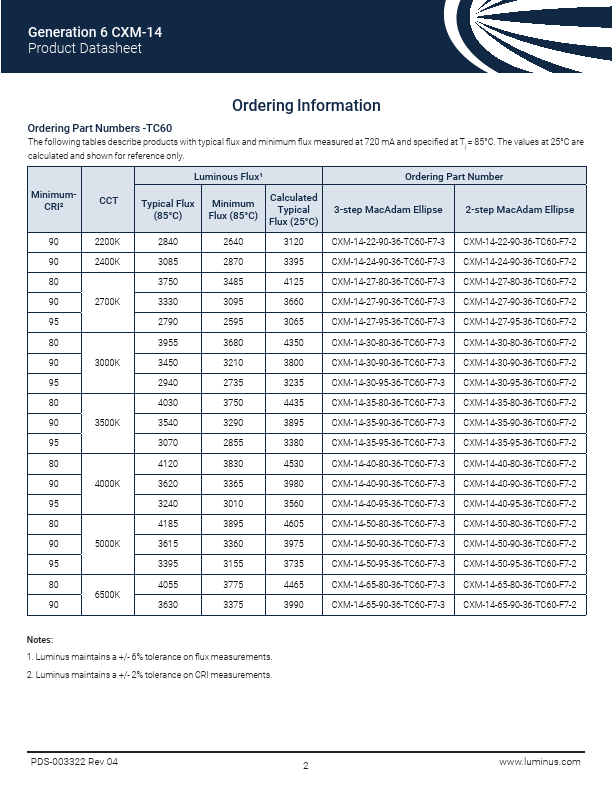

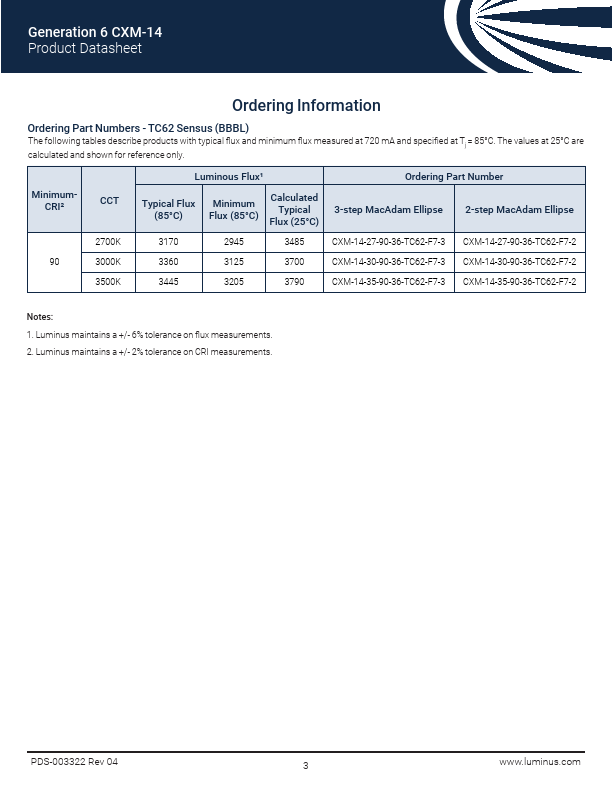

Ordering Information- . . .- . . . 2 Binning Structure- . . .-
- . 5 Absolute Maximum Ratings- . . .. . 7 Characteristics
- . .-
- . . . . 8 Angular Distribution and Typical Spectrum- .-
- - . . . 10 Derating Curve-
- - . . . 11
Mechanical Dimensions- .- 12
Shipping Tray Outline
- - . . 13
Shipping Label . .-
- - . 14
Technology Overview
-
- . . 15
Applications
- Spotlights/Track Lights
- Downlights
- Shop Lighting
- Hospitality Lighting
Test Specifications-
- . . . . 15
- Architectural and Specialty
- Street Lighting
- Parking Lot and Area Lighting
- Tunnel Lighting
Handling Notes
- -
- . . 16 Revision History . .-
- - 18
PDS-003322 Rev 04
Improving Life with Photons
.luminus....
