MA4P303-32 - Packaged PIN Diodes

Download the MA4P303-32 datasheet PDF. This datasheet also covers the MA4P203-30_MA variant, as both devices belong to the same packaged pin diodes family and are provided as variant models within a single manufacturer datasheet.

Description

M/A-COM's broad line of packaged PIN diodes encompasses a comprehensive range of electrical characteristics and package outlines.

This diverse union of semiconductor technology and chip packaging gives considerable flexibility to the circuit designer.

Features

  • High Power Fast Speed Voltage Ratings to 1500 Volts Wide Selection of Carrier Lifetimes Wide Selection of Capacitances Assortment of Packages Styles Available Screened for Military.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MA4P203-30_MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MA4P4006-1041 PIN Diode MACOM
MA4P7452F-1072 Non Magnetic SMQ MELF PIN Diode MACOM
MA4P7455-1225 Quad PIN Diode MACOM
MA4000 Silicon planar type Panasonic
MA4000N Silicon planar type Panasonic Semiconductor

Other Datasheets by MACOM Technology Solutions

Part Number Description
MA4P303-255 Packaged PIN Diodes
MA4P High Power PIN Diodes
MA4P1200-401T High Power PIN Diodes
MA4P1200NM-401T High Power PIN Diodes
MA4P1250-1072T High Power PIN Diodes

Full PDF Text Transcription

Click to expand full text

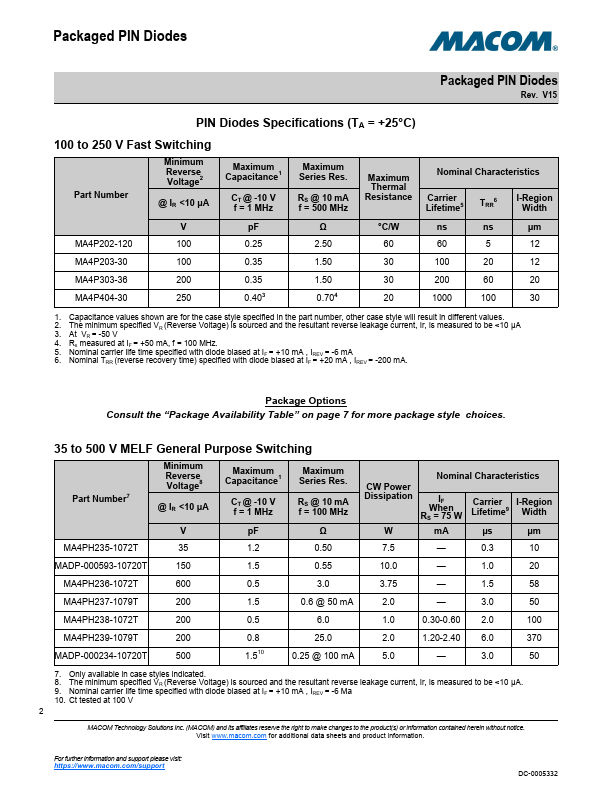

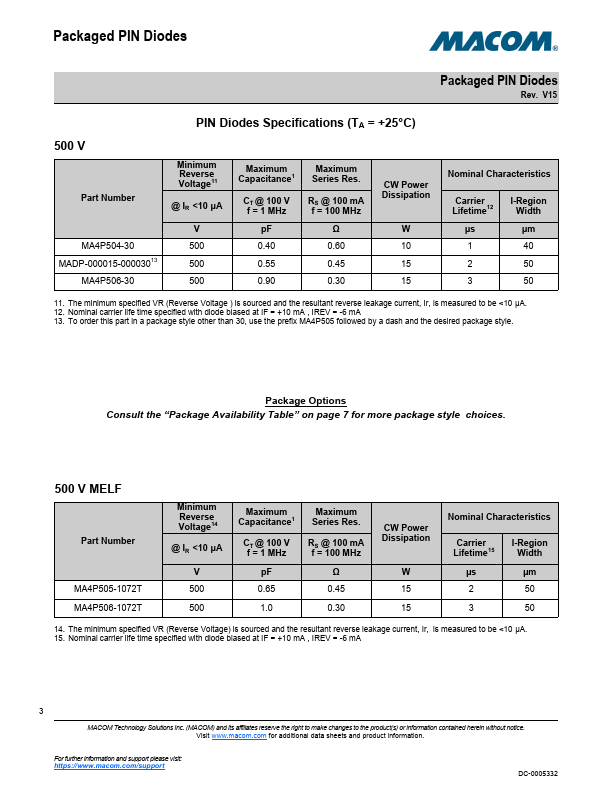

www.DataSheet.co.kr Packaged PIN Diodes RoHS Compliant Features ♦ ♦ ♦ ♦ ♦ ♦ ♦ High Power Fast Speed Voltage Ratings to 1500 Volts Wide Selection of Carrier Lifetimes Wide Selection of Capacitances Assortment of Packages Styles Available Screened for Military Applications Rev V.9 Maximum Power Dissipation Cathode Heatsink Packages 30,31,32,36,43,94,111,120, 150,255 258,296,1072,1079 Leaded Packages @+25°C 144, 186, 276,1088 Surface Mount Package +25°C 1056 Pdiss = T (max Operating)-25°C Thermal Resistance Pdiss = 250mW Description and Applications M/A-COM's broad line of packaged PIN diodes encompasses a comprehensive range of electrical characteristics and package outlines.
