FK-130SH-16180
FK-130SH-16180 is Carbon-brush motors manufactured by MABUCHI MOTOR.
MFG MODEL
FK-130RH-09490 FK-130RH-15210 FK-130SH-09450 FK-130SH-16180

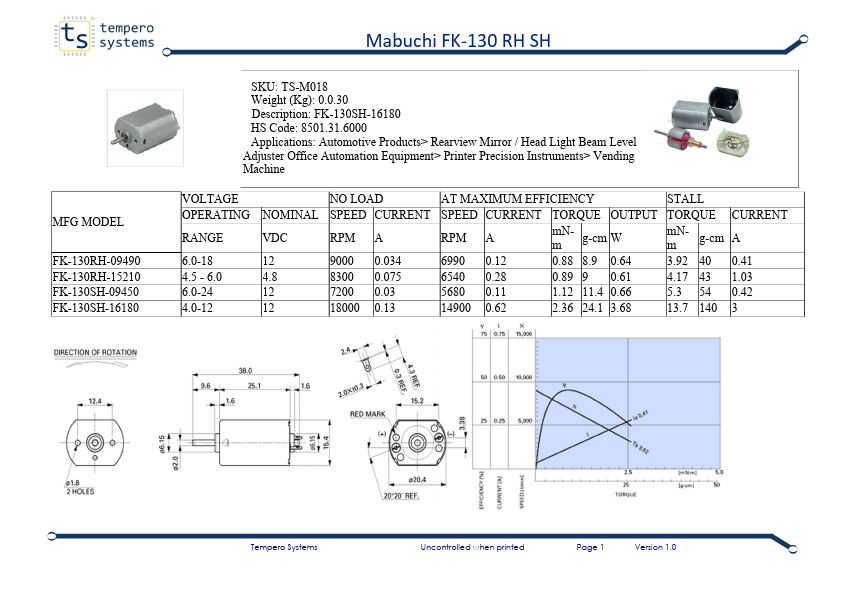

Mabuchi FK-130 RH SH
SKU: TS-M018 Weight (Kg): 0.0.30 Description: FK-130SH-16180 HS Code: 8501.31.6000 Applications: Automotive Products> Rearview Mirror / Head Light Beam Level Adjuster Office Automation Equipment> Printer Precision Instruments> Vending Machine
VOLTAGE OPERATING
RANGE
6.0-18 4.5
- 6.0 6.0-24 4.0-12
NOMINAL
12 4.8 12 12
NO LOAD SPEED CURRENT
RPM A
9000 8300 7200 18000
0.034 0.075 0.03 0.13
AT MAXIMUM EFFICIENCY
STALL
SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RPM A m Nm g-cm W m Nm g-cm A
6990 0.12
0.88 8.9 0.64
3.92 40 0.41
6540 0.28
0.89 9 0.61
4.17 43 1.03
5680 0.11
1.12 11.4 0.66
5.3 54 0.42
14900 0.62
2.36 24.1 3.68
13.7 140...
