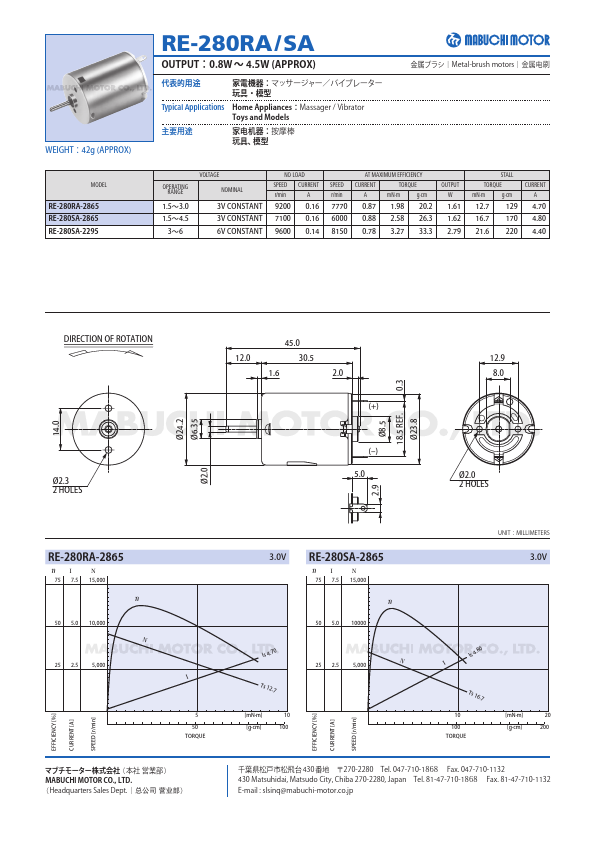

RE-280SA-2295
RE-280SA-2295 is Metal-brush motors manufactured by MABUCHI MOTOR.
- Part of the RE-280RA-2865 comparator family.
- Part of the RE-280RA-2865 comparator family.
WEIGHT：42g (APPROX)
MODEL
RE-280RA-2865 RE-280SA-2865 RE-280SA-2295
RE-280RA / SA
OUTPUT：0.8W 〜 4.5W (APPROX)
代表的用途 Typical Applications ᇶေႨ
家電機器：マッサージャー／バイブレーター 玩具- 模型
Home Appliances：Massager / Vibrator Toys and Models
ࡅࠏఖ：οଉϿ ທऎ、ଆ
金属ブラシ｜Metal-brush motors｜ࣁඋ
OPERATING RANGE
1.5〜3.0 1.5〜4.5
3〜6
VOLTAGE
NOMINAL
3V CONSTANT 3V CONSTANT 6V CONSTANT
NO LOAD SPEED CURRENT r/min
9200 0.16
7100 0.16
9600 0.14
SPEED
AT MAXIMUM EFFICIENCY
CURRENT
TORQUE r/min
A m N- m g- cm
7770 0.87 1.98 20.2
6000 0.88 2.58 26.3
8150 0.78 3.27 33.3
OUTPUT W
1.61 1.62 2.79
STALL TORQUE
CURRENT m N- m g- cm
12.7 129 4.70
16.7 170 4.80
21.6 220 4.40
DIRECTION OF...
