AM-131-PIN - Broadband RF Amplifier

Download the AM-131-PIN datasheet PDF. This datasheet also covers the AM-131PIN variant, as both devices belong to the same broadband rf amplifier family and are provided as variant models within a single manufacturer datasheet.

General Description

The AM-131-PIN RF amplifier is a discrete thin film hybrid design, which incorporates the use of thin film manufacturing processes for accurate performance and high reliability.

Key Features

  • HIGH.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AM-131PIN-MACOM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
AM-1312C Silicon Solar Cell Sanyo
AM-132 High Performance Amplifier MA-COM
AM-134 High Performance Amplifier MA-COM
AM-136 High Performance Amplifier MA-COM
AM-138 High Performance Amplifier MA-COM

Other Datasheets by MACOM Technology Solutions

Part Number Description
AM-140 High Performance Amplifier
AM-142 Low Noise Amplifier
AM-143 Low Noise Amplifier
AM-145 High Performance Amplifier
AM-146 High Performance Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

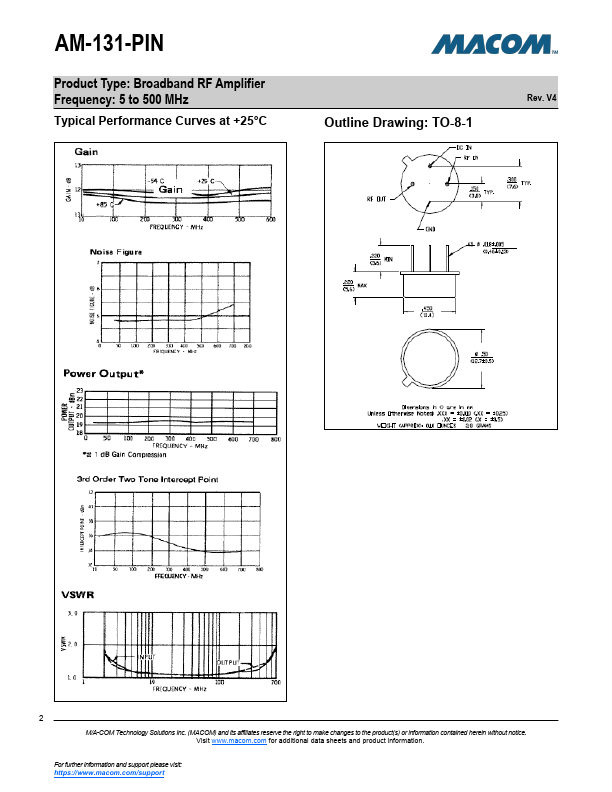

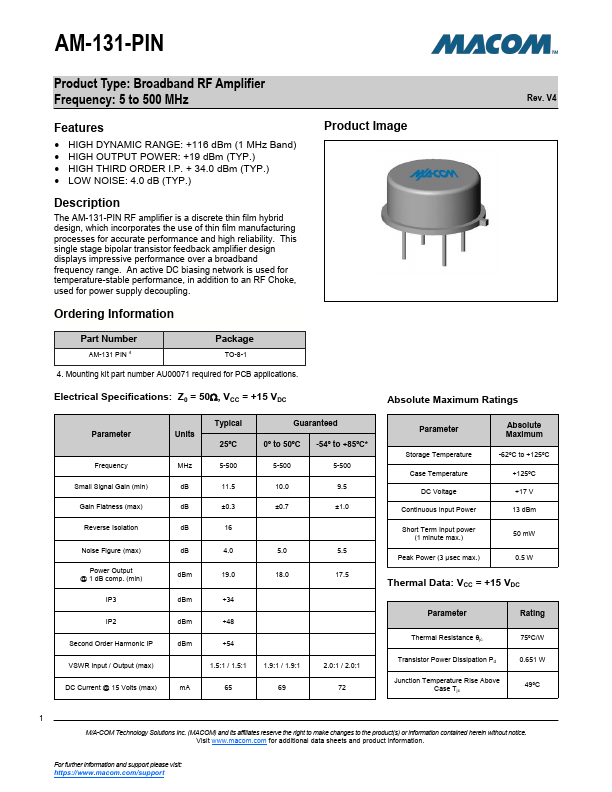

AM-131-PIN Product Type: Broadband RF Amplifier Frequency: 5 to 500 MHz Rev. V4 Features  HIGH DYNAMIC RANGE: +116 dBm (1 MHz Band)  HIGH OUTPUT POWER: +19 dBm (TYP.)  HIGH THIRD ORDER I.P. + 34.0 dBm (TYP.)  LOW NOISE: 4.0 dB (TYP.) Description The AM-131-PIN RF amplifier is a discrete thin film hybrid design, which incorporates the use of thin film manufacturing processes for accurate performance and high reliability. This single stage bipolar transistor feedback amplifier design displays impressive performance over a broadband frequency range. An active DC biasing network is used for temperature-stable performance, in addition to an RF Choke, used for power supply decoupling. Ordering Information Product Image Part Number AM-131 PIN 4 Package TO-8-1 4.
