AM-151 - Cascadable Amplifier

General Description

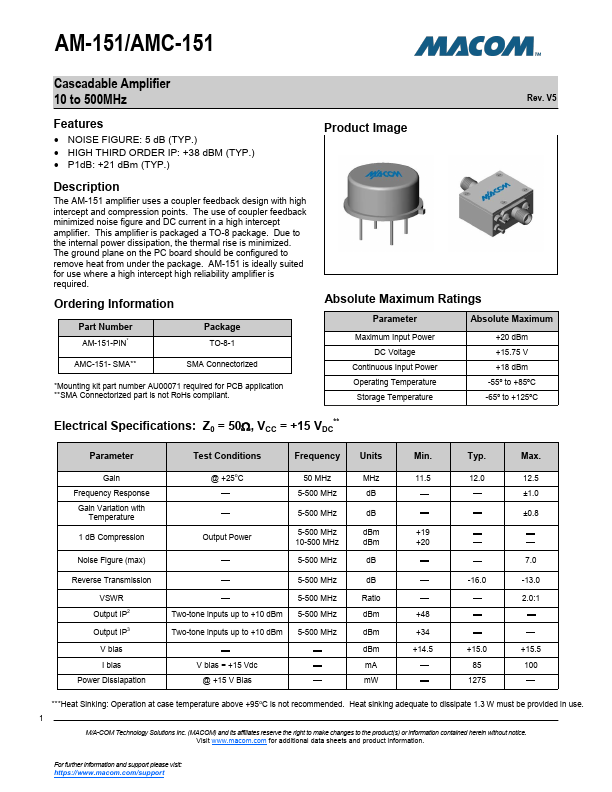

The AM-151 amplifier uses a coupler feedback design with high intercept and compression points.

The use of coupler feedback minimized noise figure and DC current in a high intercept amplifier.

This amplifier is packaged a TO-8 package.

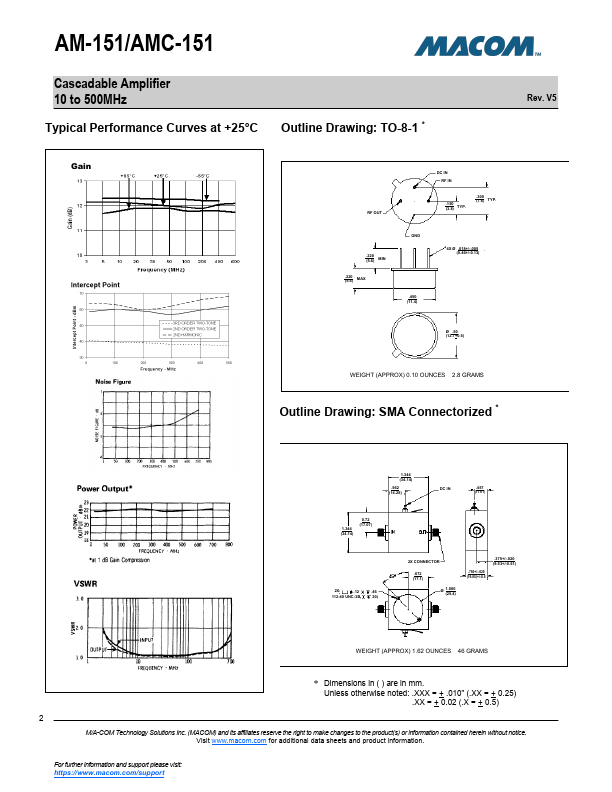

Key Features

  • NOISE FIGURE: 5 dB (TYP. ).
  • HIGH THIRD ORDER IP: +38 dBM (TYP. ).
  • P1dB: +21 dBm (TYP. ).
