AM-182 - Cascadable Thin Film Amplifier

Description

M/A-COM’s AM-182 is a high gain feedback amplifier with high intercept and compression points.

This amplifier is packaged in a TO-8 package.

Due to the internal power dissipation the thermal rise should be minimized.

Features

  • 28.5 dB Typical Gain.
  • 2.7 dB Typical Low Noise.

📥 Download Datasheet

Datasheet preview – AM-182

Datasheet Details

Part number AM-182
Manufacturer MACOM
File Size 541.66 KB
Description Cascadable Thin Film Amplifier
Datasheet download datasheet AM-182 Datasheet

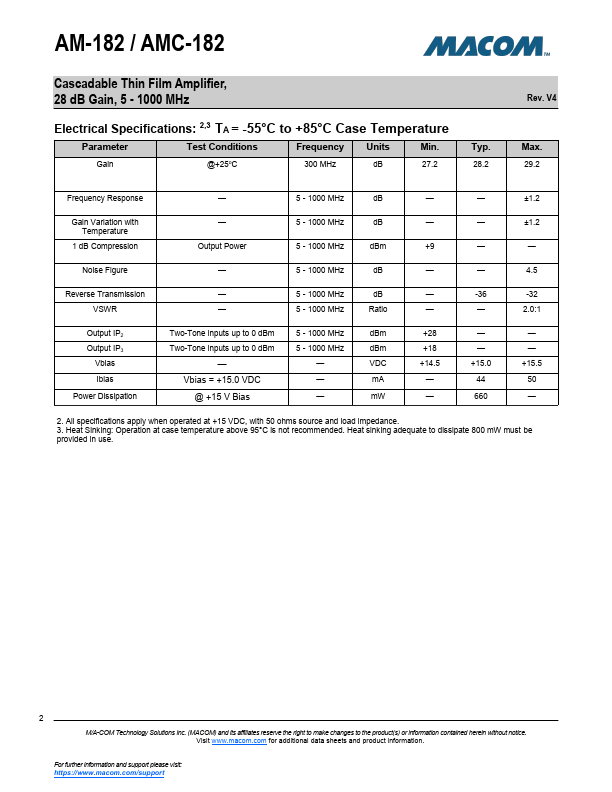

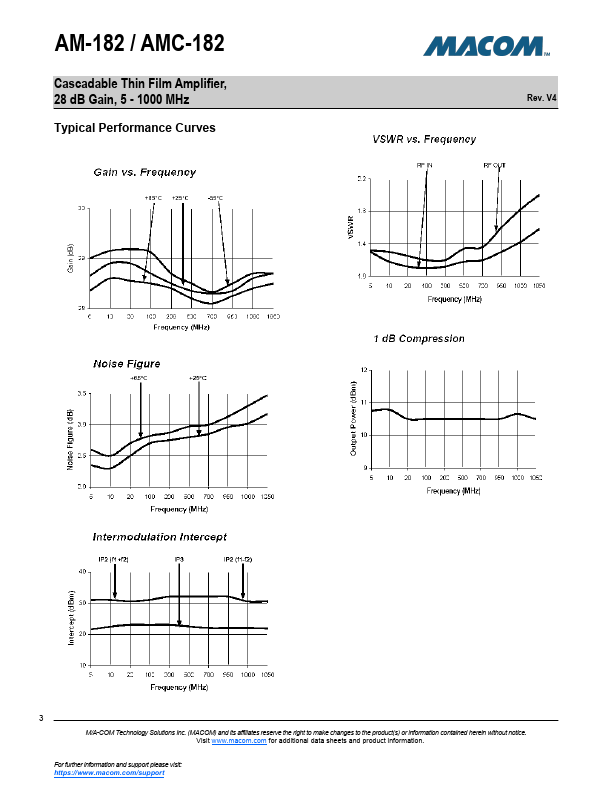

Additional preview pages of the AM-182 datasheet.

📁 Similar Datasheet

Other Datasheets by MACOM
  • AM-184 - Cascadable Thin Film Amplifier
  • AM-131-PIN - Broadband RF Amplifier
  • AM-140 - High Performance Amplifier
  • AM-142 - Low Noise Amplifier
  • AM-143 - Low Noise Amplifier
  • AM-145 - High Performance Amplifier
  • AM-146 - High Performance Amplifier
  • AM-147 - Cascadable Amplifier

Full PDF Text Transcription

Click to expand full text

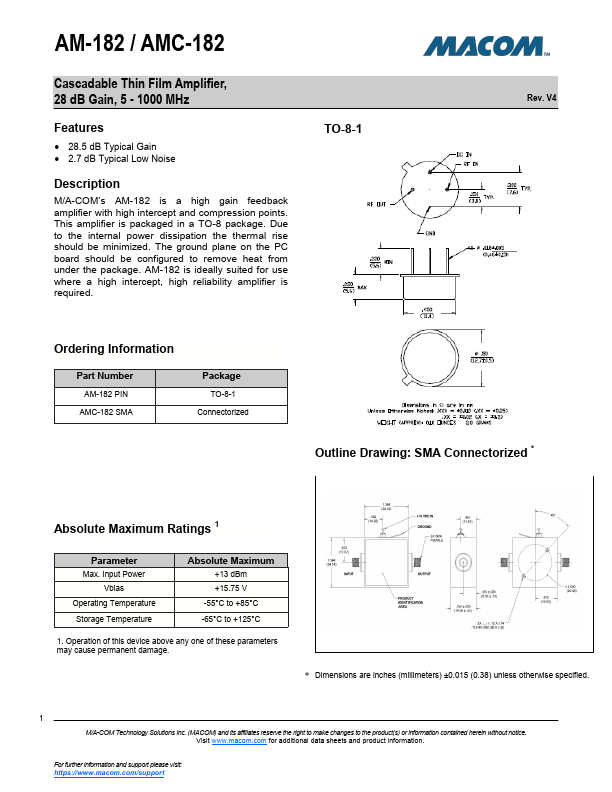

AM-182 / AMC-182 Cascadable Thin Film Amplifier, 28 dB Gain, 5 - 1000 MHz Features  28.5 dB Typical Gain  2.7 dB Typical Low Noise Description M/A-COM’s AM-182 is a high gain feedback amplifier with high intercept and compression points. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise should be minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-182 is ideally suited for use where a high intercept, high reliability amplifier is required. TO-8-1 Rev. V4 Ordering Information Part Number AM-182 PIN AMC-182 SMA Package TO-8-1 Connectorized Outline Drawing: SMA Connectorized * Absolute Maximum Ratings 1 Parameter Max.
