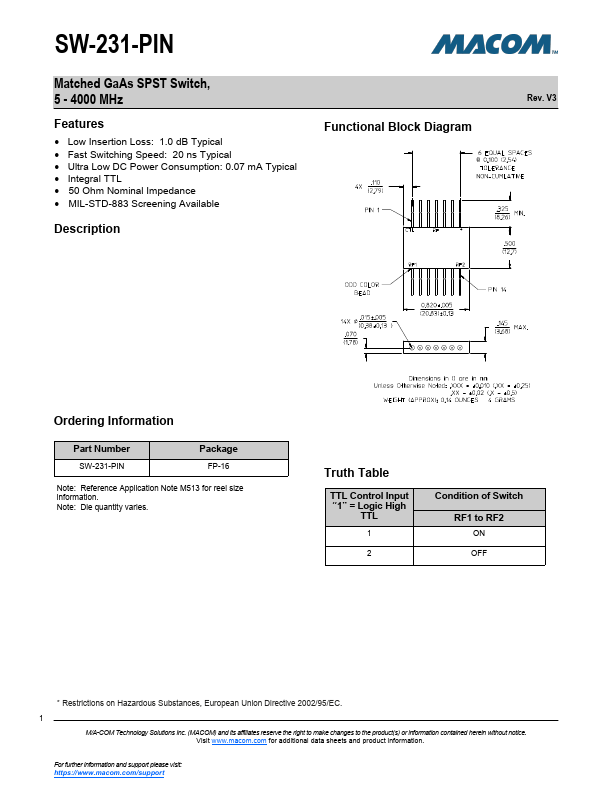

Datasheet Summary
Matched GaAs SPST Switch, 5
- 4000 MHz
Features
- Low Insertion Loss: 1.0 dB Typical
- Fast Switching Speed: 20 ns Typical
- Ultra Low DC Power Consumption: 0.07 mA Typical
- Integral TTL
- 50 Ohm Nominal Impedance
- MIL-STD-883 Screening Available
Description
Functional Block Diagram
Rev. V3
Ordering Information
Part Number SW-231-PIN
Package FP-16
Note: Reference Application Note M513 for reel size information. Note: Die quantity varies.
Truth Table
TTL Control Input “1” = Logic High
TTL 1
Condition of Switch RF1 to RF2 ON OFF
- Restrictions on Hazardous Substances, European Union Directive 2002/95/EC. 1
