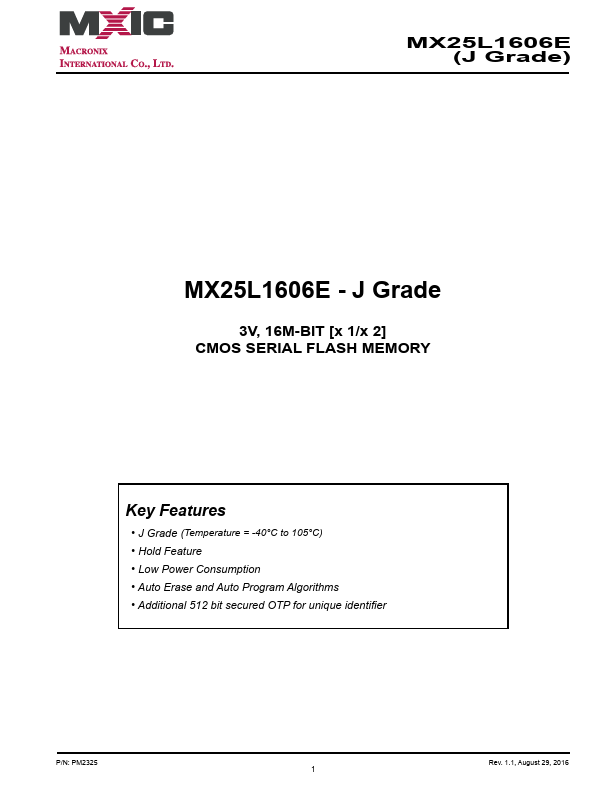

MX25L1606E-J
Features
- J Grade (Temperature = -40°C to 105°C)
- Hold Feature
- Low Power Consumption
- Auto Erase and Auto Program Algorithms
- Additional 512 bit secured OTP for unique identifier
P/N: PM2325
Rev. 1.1, August 29, 2016 1
MX25L1606E (J Grade)
16M-BIT [x 1 / x 2] CMOS SERIAL FLASH
FEATURES
GENERAL
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 16,777,216 x 1 bit structure or 8,388,608 x 2 bits (Dual Output mode) structure
- 512 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 32 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Program Capability
- Byte base
- Page base (256 bytes)
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast access time: 86MHz serial clock
- Serial clock of Dual Output mode: 80MHz
- Fast program time: 1.4ms(typ.) and 5ms(max.)/page
- Byte program time: 9us (typical)...
