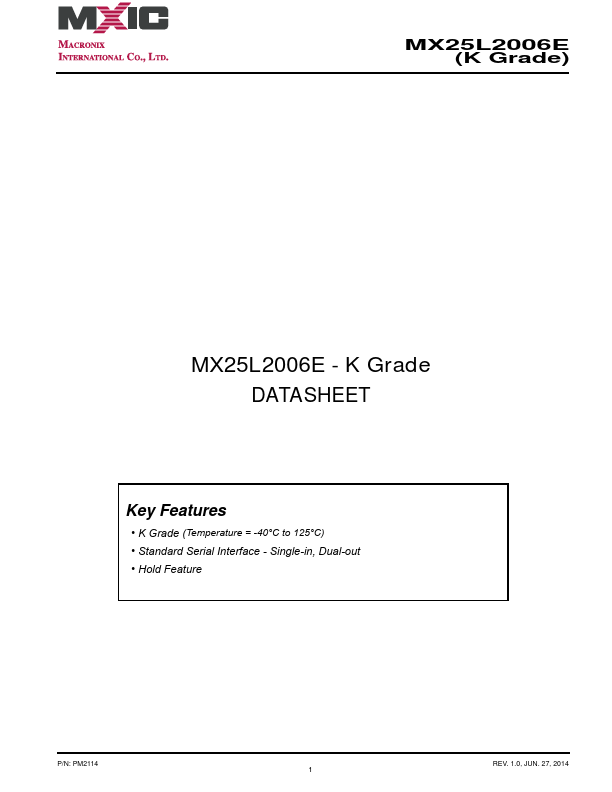

MX25L2006E-K
Features
- K Grade (Temperature = -40°C to 125°C)
- Standard Serial Interface
- Single-in, Dual-out
- Hold Feature
P/N: PM2114
REV. 1.0, JUN. 27, 2014 1
MX25L2006E (K Grade)

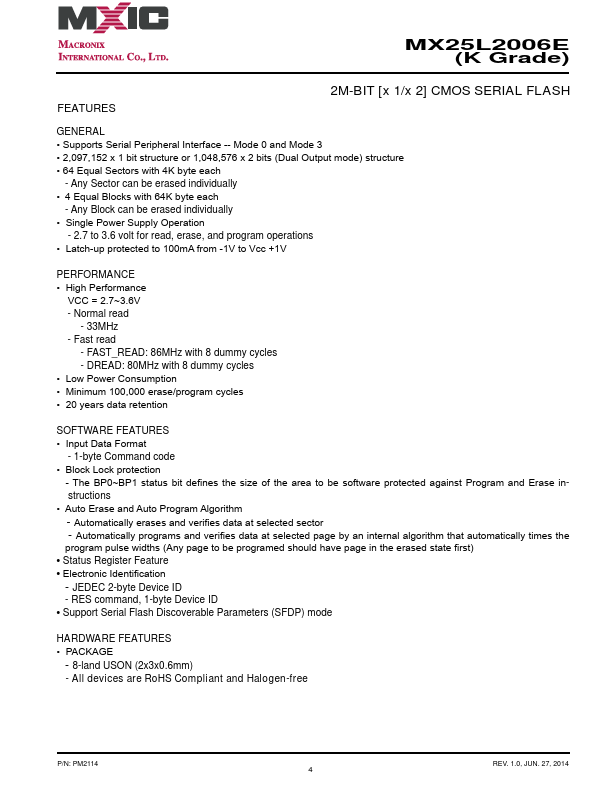

FEATURES
2M-BIT [x 1/x 2] CMOS SERIAL FLASH
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 2,097,152 x 1 bit structure or 1,048,576 x 2 bits (Dual Output mode) structure
- 64 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 4 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
VCC = 2.7~3.6V
- Normal read
- 33MHz
- Fast read
- FAST_READ: 86MHz with 8 dummy cycles
- DREAD: 80MHz with 8 dummy cycles
- Low Power Consumption
- Minimum 100,000 erase/program cycles
- 20 years data retention
SOFTWARE FEATURES
- Input Data Format
- 1-byte mand code
- Block Lock...
