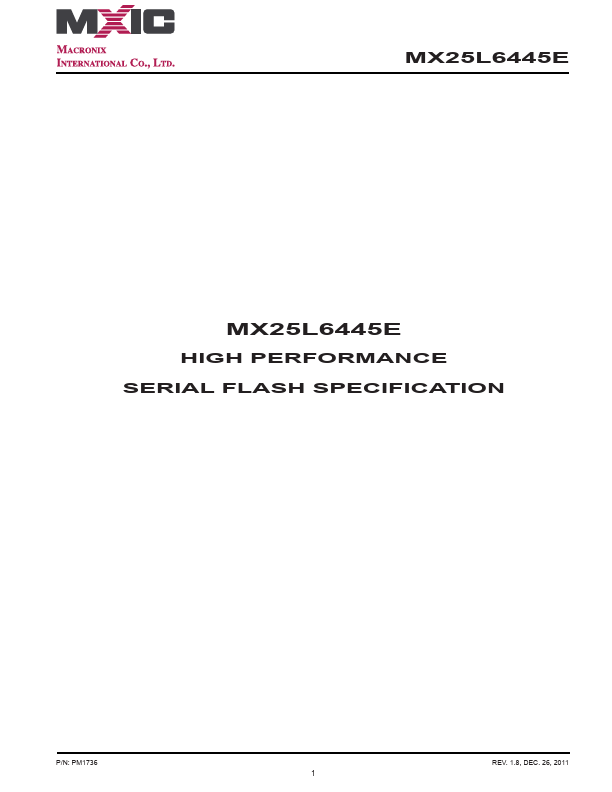

MACRONIX MX25L6445E
MX25L6445E is 67,108,864 bits serial Flash memory, which is configured as 8,388,608 x 8 internally. When it is in two or four I/O mode, the structure becomes 33,554,432 bits x 2 or 16,777,216 bits x 4. The MX25L6445E features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus.| Part No. | MX25L6445E |
|---|---|
| Datasheet | MX25L6445E Download |
| Manufacturer |  MACRONIX |
| Description | FLASH MEMORY |
| Buy | Stock & Price |

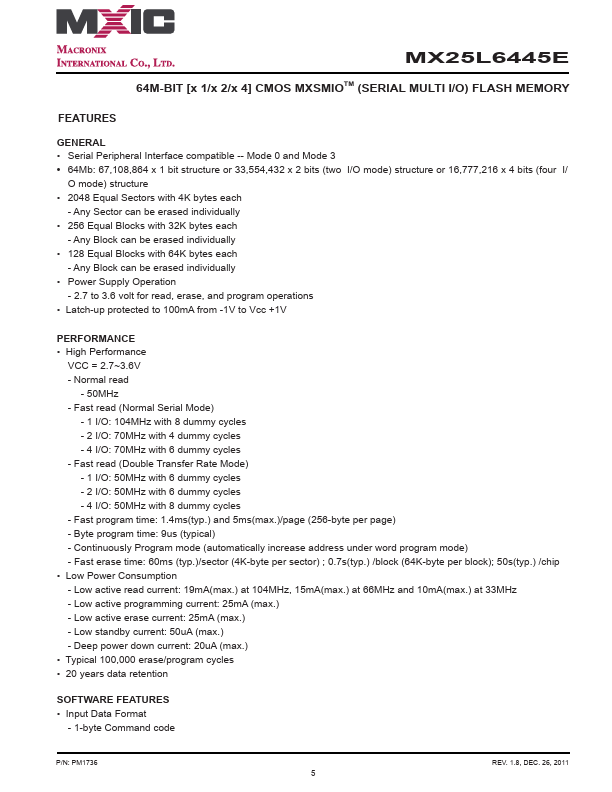

FEATURES
GENERAL● Serial Peripheral Interface compatible -- Mode 0 and Mode 3
● 64Mb: 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/ O mode) structure
● 2048 Equal Sectors with 4K bytes each - Any Sector can be erased individually
● 256 Equal Blocks with 32K bytes each - Any Block can be erased individually
● 128 Equal Blocks with 64K bytes each - Any Block can be erased individually
● Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
● Latch-up protected to 100mA from -1V to Vcc +1V PERFORMANCE
● High Performance VCC = 2.7~3.6V - Normal read - 50MHz - Fast read (Normal Serial Mode) - 1 I/O: 104MHz with 8 dummy cycles - 2 I/O: 70MHz with 4 dummy cycles - 4 I/O: 70MHz with 6 dummy cycles - Fast read (Double Transfer Rate Mode) - 1 I/O: 50MHz with 6 dummy cycles - 2 I/O: 50MHz with 6 dummy cycles - 4 I/O: 50MHz with 8 dummy cycles - Fast program time: 1.4ms(typ.) and 5ms(max.)/page (256-byte per...
