MX25L6473F - 64M-BIT [x 1/x 2/x 4] FLASH MEMORY

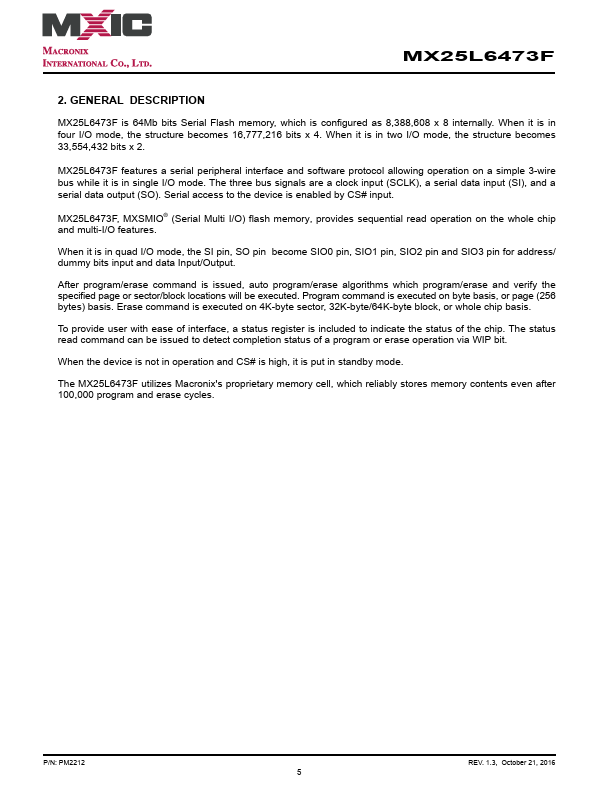

General Description

5 3.

PIN CONFIGURATION 6 4.

PIN DESCRIPTION 6 5.

Key Features

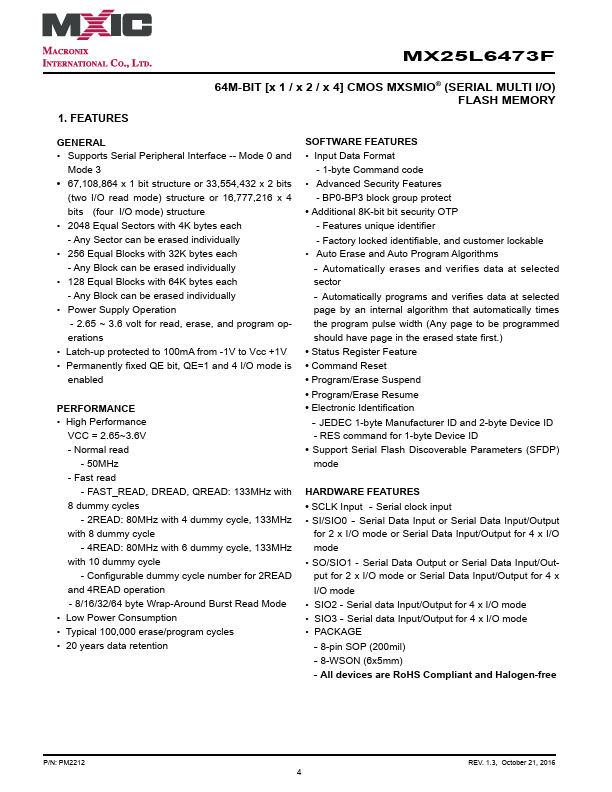

  • Multi I/O Support - Single I/O, Dual I/O and Quad I/O.
  • Auto Erase and Auto Program Algorithms.
  • Program Suspend/Resume & Erase Suspend/Resume.
  • Permanently fixed QE bit, QE=1; and 4 I/O mode is enabled P/N: PM2212 REV. 1.3, October 21, 2016 1 MX25L6473F Contents 1.

📥 Download Datasheet

Datasheet Details

Part number MX25L6473F
Manufacturer Macronix
File Size 1.07 MB
Description 64M-BIT [x 1/x 2/x 4] FLASH MEMORY
Datasheet download datasheet MX25L6473F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25L6402 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY Macronix International
MX25L6402A 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY Macronix International
MX25L6405D 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH Macronix International
MX25L6406E 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH Macronix International
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH Macronix International

Other Datasheets by Macronix

Part Number Description
MX25L6473E 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
MX25L6405 64M-BIT [x 1] CMOS SERIAL eLiteFlash MEMORY
MX25L6408D FLASH MEMORY
MX25L6408E 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH
MX25L6433F 64M-BIT CMOS MXSMIO FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

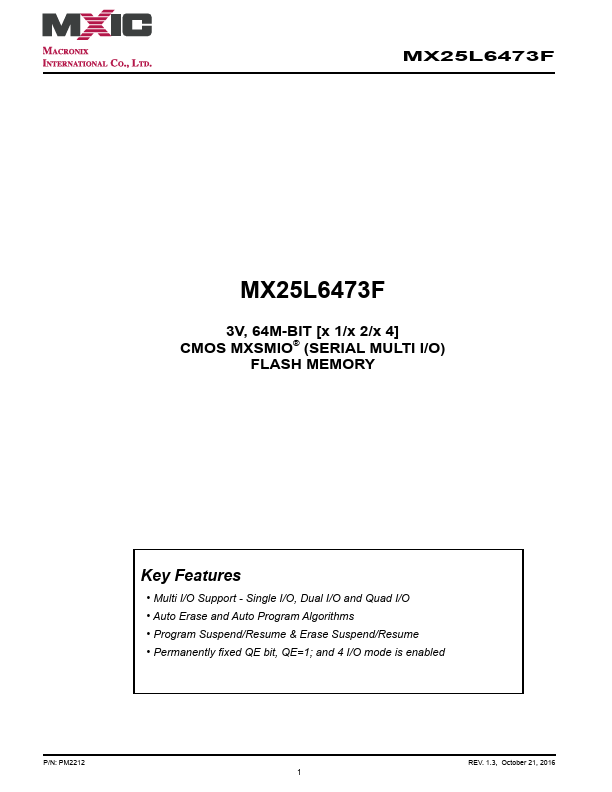

MX25L6473F MX25L6473F 3V, 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • Multi I/O Support - Single I/O, Dual I/O and Quad I/O • Auto Erase and Auto Program Algorithms • Program Suspend/Resume & Erase Suspend/Resume • Permanently fixed QE bit, QE=1; and 4 I/O mode is enabled P/N: PM2212 REV. 1.3, October 21, 2016 1 MX25L6473F Contents 1. FEATURES......................................................................................................................................................... 4 2. GENERAL DESCRIPTION................................................................................................................................ 5 3. PIN CONFIGURATION..................................................................................
