MX25L8035E Overview
The MX25L8035E are 8,388,608 bit serial Flash memory, which is configured as 1,048,576 x 8 internally. When it is in two or four I/O read mode, the structure bees 4,194,304 bits x 2 or 2,097,152 bits x.

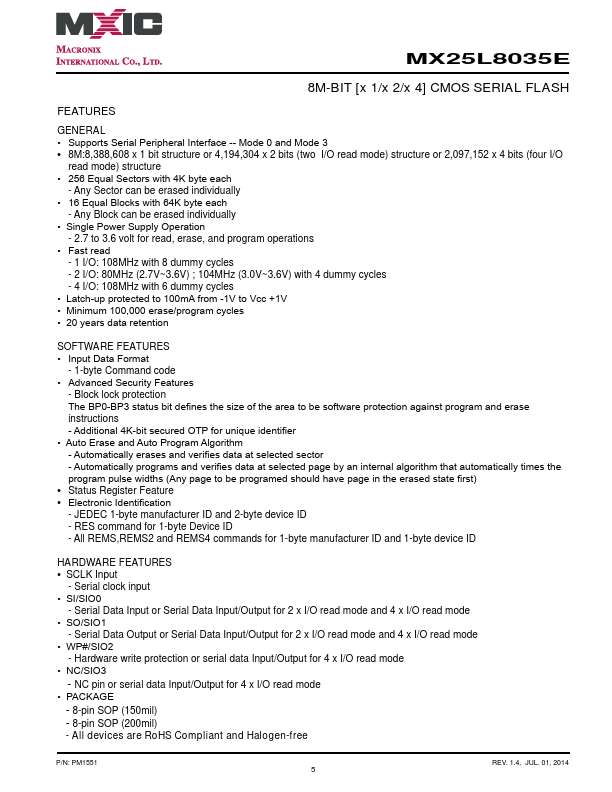

MX25L8035E Key Features
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 256 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 16 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Fast read
- 1 I/O: 108MHz with 8 dummy cycles
- 2 I/O: 80MHz (2.7V~3.6V) ; 104MHz (3.0V~3.6V) with 4 dummy cycles
