MX25R4035F - Wide Vcc Range 4M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY

General Description

Table 1.

Additional Feature7 3.

4.

Key Features

  • Ultra Low Power Mode and High Performance Mode.
  • Wide Range 1.7 to 3.6 volt for read, erase, and program operations.
  • Multi I/O Support - Single I/O, Dual I/O and Quad I/O.
  • Program Suspend/Resume & Erase Suspend/Resume P/N: PM2222 REV. 0.01, MAR. 06, 2015 1.

📥 Download Datasheet

Datasheet Details

Part number MX25R4035F
Manufacturer Macronix
File Size 1.35 MB
Description Wide Vcc Range 4M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY
Datasheet download datasheet MX25R4035F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25924 12V electronic fuse MAXINMICRO
MX25947 24V electronic fuse MAXINMICRO
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH Macronix International
MX25L1021E 512K-BIT [x 1] CMOS SERIAL FLASH Memory Macronix International
MX25L1025C 1M-BIT [x 1] CMOS SERIAL FLASH Macronix International

Other Datasheets by Macronix

Part Number Description
MX25R1035F Wide Vcc Range 1M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY
MX25R1635F Wide Vcc Range 16M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY
MX25R2035F Wide Vcc Range 2M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY
MX25R3235F Wide Vcc Range 32M-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY
MX25R512F Wide Vcc Range 512K-BIT [x 1/x 2/x 4] CMOS MXSMIO FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

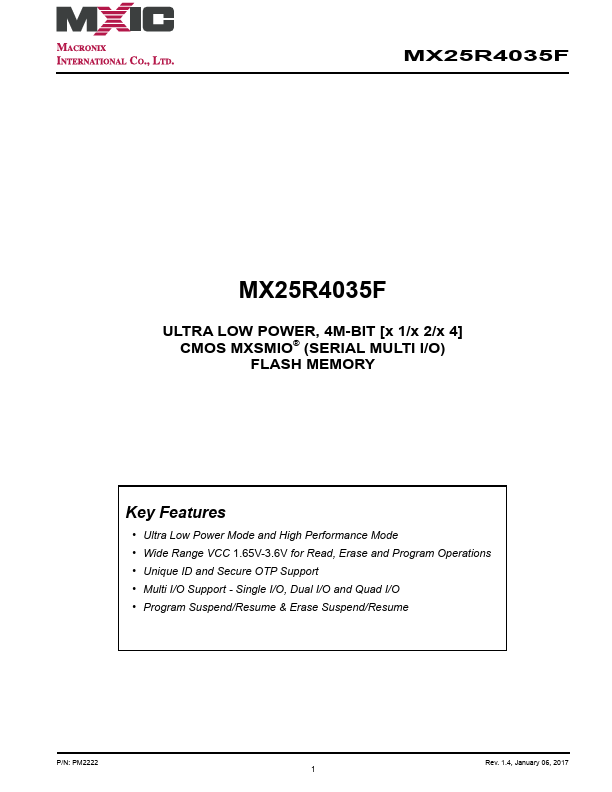

ADVANCED INFORMATION MX25R4035F MX25R4035F Wide Vcc Range, 4M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • Ultra Low Power Mode and High Performance Mode • Wide Range 1.7 to 3.6 volt for read, erase, and program operations • Multi I/O Support - Single I/O, Dual I/O and Quad I/O • Program Suspend/Resume & Erase Suspend/Resume P/N: PM2222 REV. 0.01, MAR. 06, 2015 1 ADVANCED INFORMATION MX25R4035F Contents 1. FEATURES............................................................................................................................................................... 4 2. GENERAL DESCRIPTION...................................................................................................................................... 6 Table 1.
