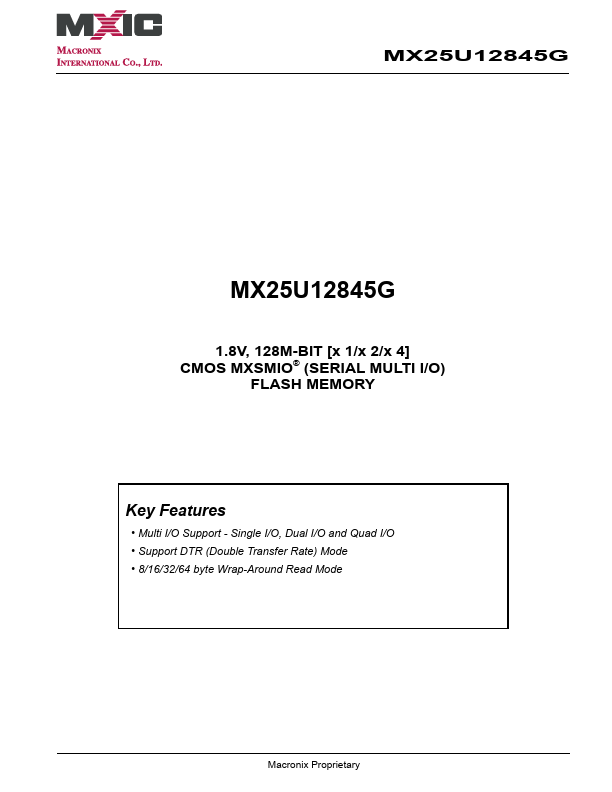

MX25U12845G
Features
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Support DTR (Double Transfer Rate) Mode
- 8/16/32/64 byte Wrap-Around Read Mode
Macronix Proprietary

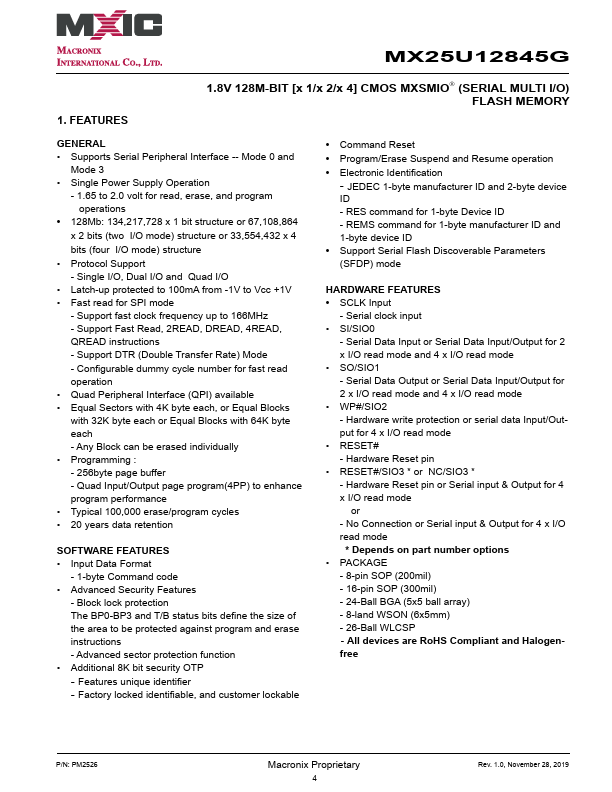

1. FEATURES
1.8V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- 128Mb: 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast read for SPI mode
- Support fast clock frequency up to 166MHz
- Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Support DTR (Double Transfer Rate) Mode
- Configurable dummy cycle number for fast read operation
- Quad Peripheral Interface (QPI) available
- Equal Sectors with 4K byte each, or Equal Blocks with...
