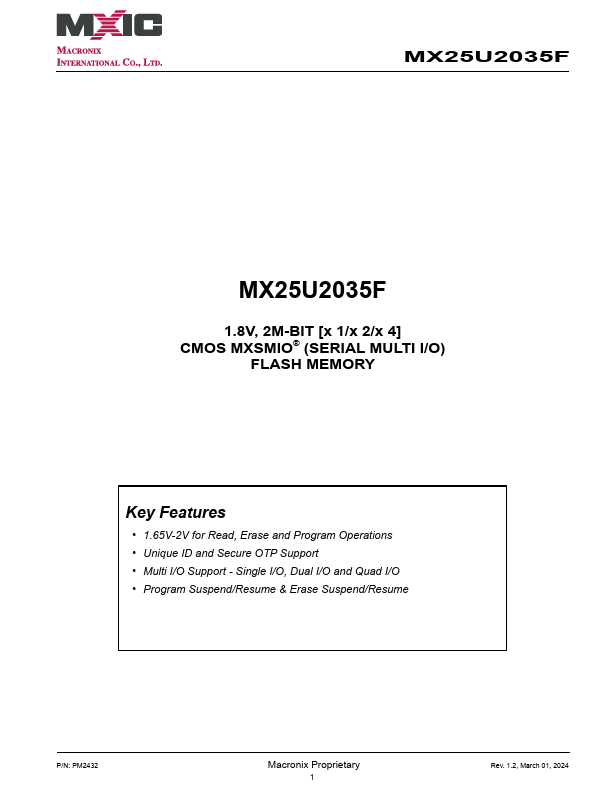

MX25U2035F
Features
- 1.65V-2V for Read, Erase and Program Operations
- Unique ID and Secure OTP Support
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2432
Macronix Proprietary
Rev. 1.2, March 01, 2024

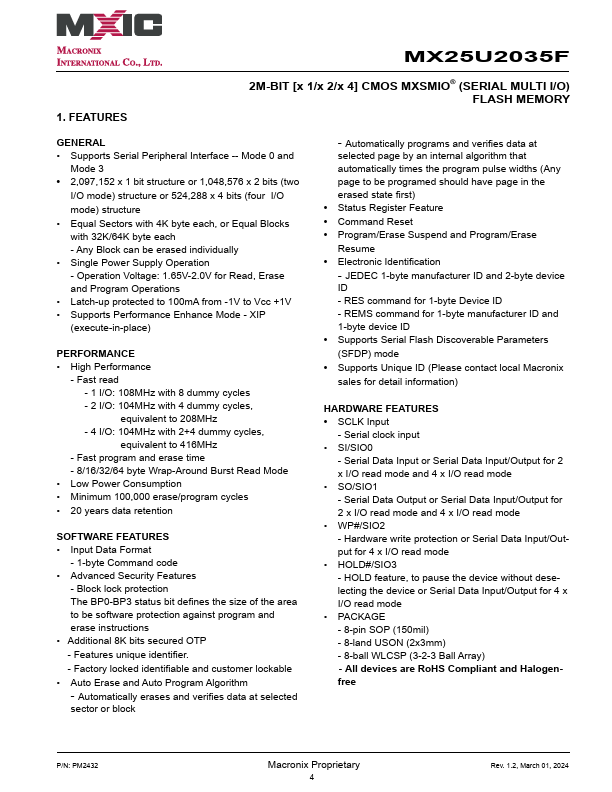

1. FEATURES
2M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 2,097,152 x 1 bit structure or 1,048,576 x 2 bits (two
I/O mode) structure or 524,288 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- Operation Voltage: 1.65V-2.0V for Read, Erase and Program Operations
- Latch-up protected to 100m A from -1V to Vcc +1V
- Supports Performance Enhance Mode
- XIP (execute-in-place)
PERFORMANCE
- High Performance
- Fast read
- 1 I/O: 108MHz with 8 dummy cycles
- 2 I/O: 104MHz with 4 dummy cycles,...
