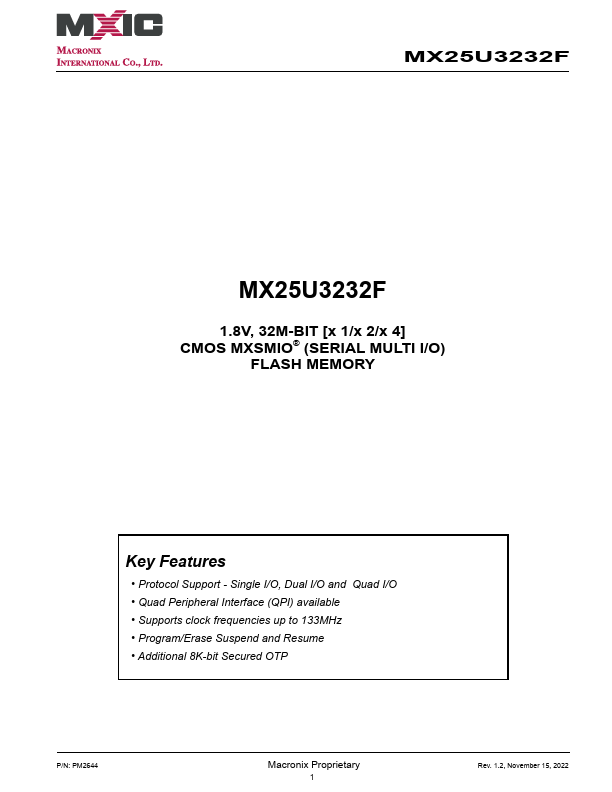

MX25U3232F
Features
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Quad Peripheral Interface (QPI) available
- Supports clock frequencies up to 133MHz
- Program/Erase Suspend and Resume
- Additional 8K-bit Secured OTP
P/N: PM2644
Macronix Proprietary
Rev. 1.2, November 15, 2022
1.8V 32M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

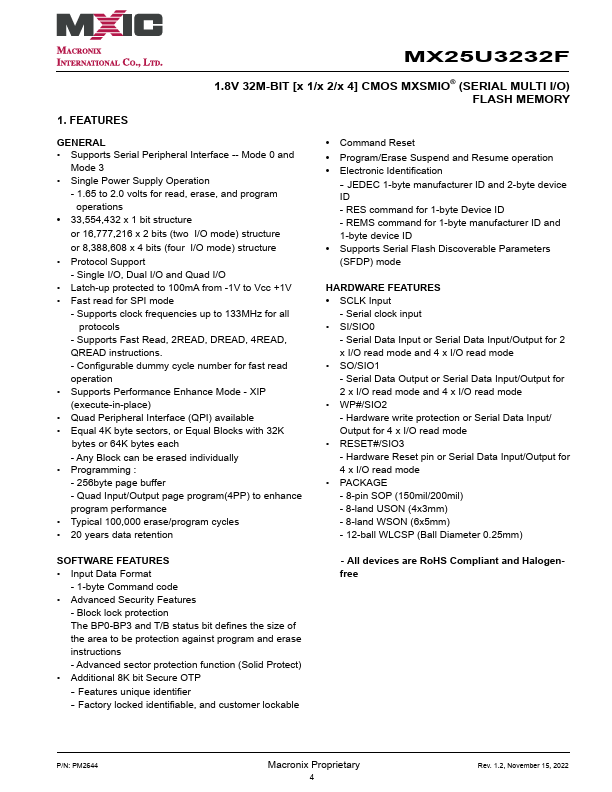

1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volts for read, erase, and program operations
- 33,554,432 x 1 bit structure or 16,777,216 x 2 bits (two I/O mode) structure or 8,388,608 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast read for SPI mode
- Supports clock frequencies up to 133MHz for all protocols
- Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions.
- Configurable dummy cycle number for fast read operation
- Supports...
