MX25U6435E
MX25U6435E is FLASH MEMORY manufactured by Macronix.

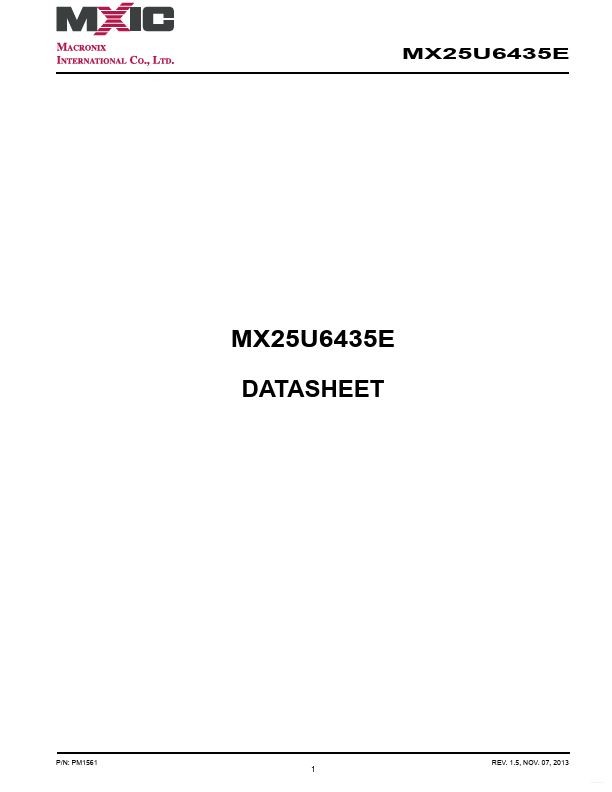

MX25U6435E DATASHEET
P/N: PM1561
REV. 1.5, NOV. 07, 2013 1 http://..
64M-BIT [x 1/x 2/x 4] 1.8V CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

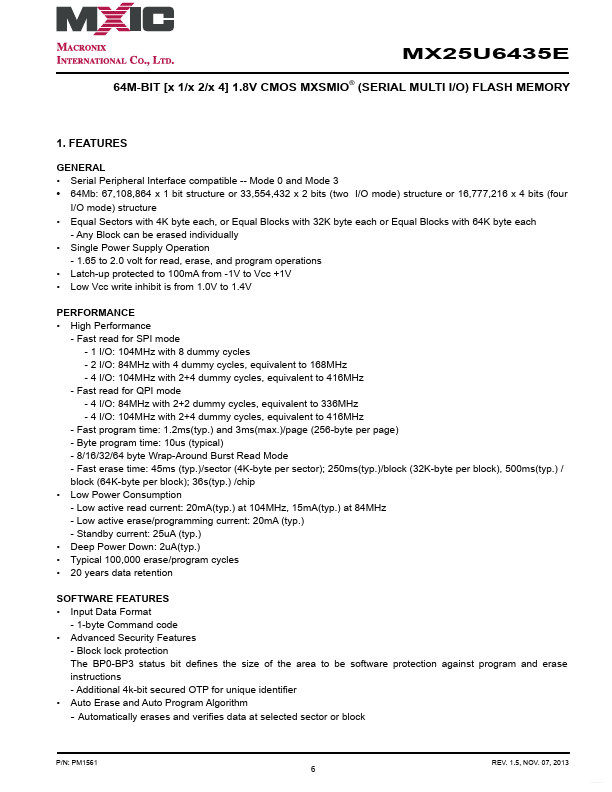

1. Features
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 64Mb: 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four
I/O mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- Latch-up protected to 100mA from -1V to Vcc +1V
- Low Vcc...
