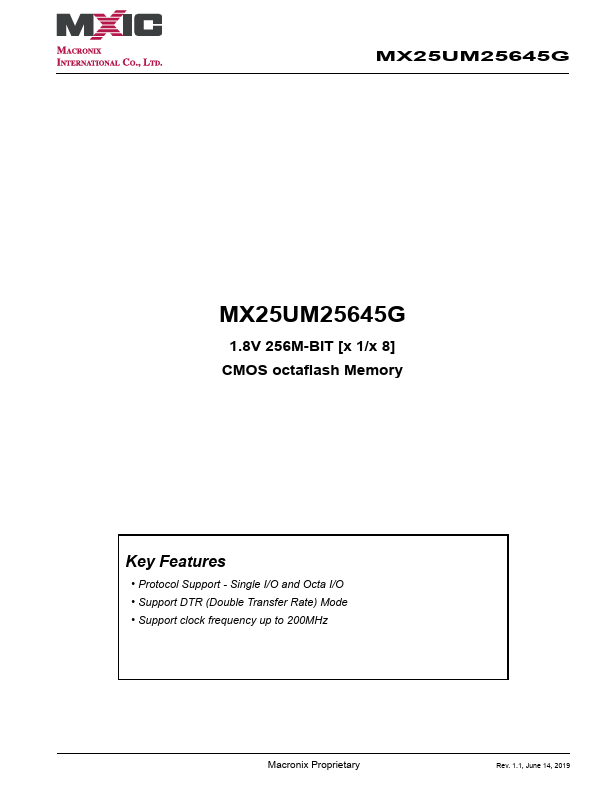

MX25UM25645G
Features
- Protocol Support
- Single I/O and Octa I/O
- Support DTR (Double Transfer Rate) Mode
- Support clock frequency up to 200MHz
Macronix Proprietary
Rev. 1.1, June 14, 2019
1.8V 256M-BIT [x 1/x 8] CMOS octaflash Memory

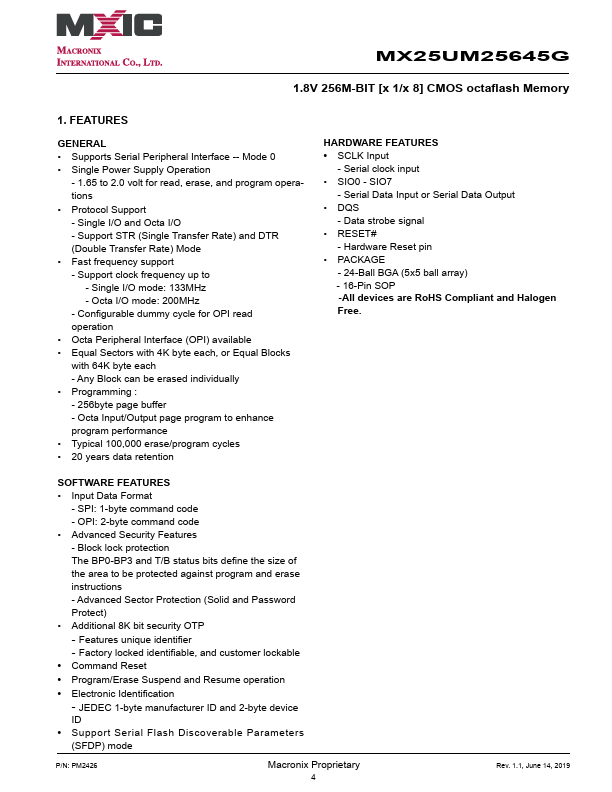

1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- Protocol Support
- Single I/O and Octa I/O
- Support STR (Single Transfer Rate) and DTR (Double Transfer Rate) Mode
- Fast frequency support
- Support clock frequency up to
- Single I/O mode: 133MHz
- Octa I/O mode: 200MHz
- Configurable dummy cycle for OPI read operation
- Octa Peripheral Interface (OPI) available
- Equal Sectors with 4K byte each, or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Programming :
- 256byte page buffer
- Octa Input/Output page program to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data...
