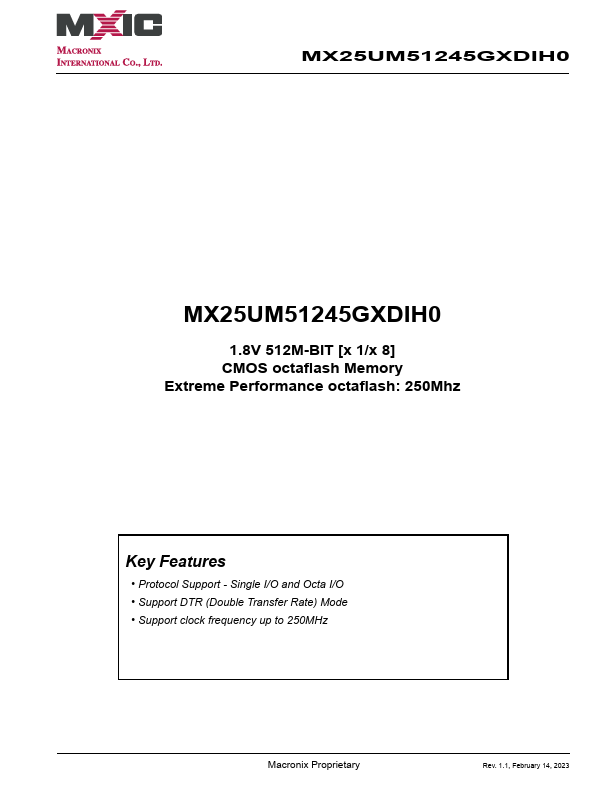

MX25UM51245GXDIH0
Features
- Protocol Support
- Single I/O and Octa I/O
- Support DTR (Double Transfer Rate) Mode
- Support clock frequency up to 250MHz
Macronix Proprietary
Rev. 1.1, February 14, 2023

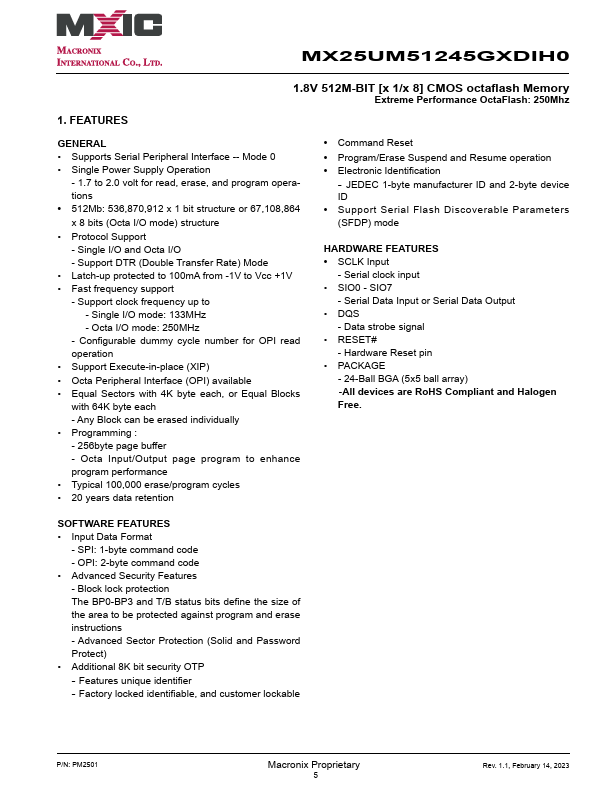

1. FEATURES
1.8V 512M-BIT [x 1/x 8] CMOS octaflash Memory
Extreme Performance Octa Flash: 250Mhz
GENERAL
- Supports Serial Peripheral Interface -- Mode 0
- Single Power Supply Operation
- 1.7 to 2.0 volt for read, erase, and program operations
- 512Mb: 536,870,912 x 1 bit structure or 67,108,864 x 8 bits (Octa I/O mode) structure
- Protocol Support
- Single I/O and Octa I/O
- Support DTR (Double Transfer Rate) Mode
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast frequency support
- Support clock frequency up to
- Single I/O mode: 133MHz
- Octa I/O mode: 250MHz
- Configurable dummy cycle number for OPI read operation
- Support Execute-in-place (XIP)
- Octa Peripheral Interface (OPI) available
- Equal Sectors with 4K byte each, or Equal Blocks with 64K byte each
-...
