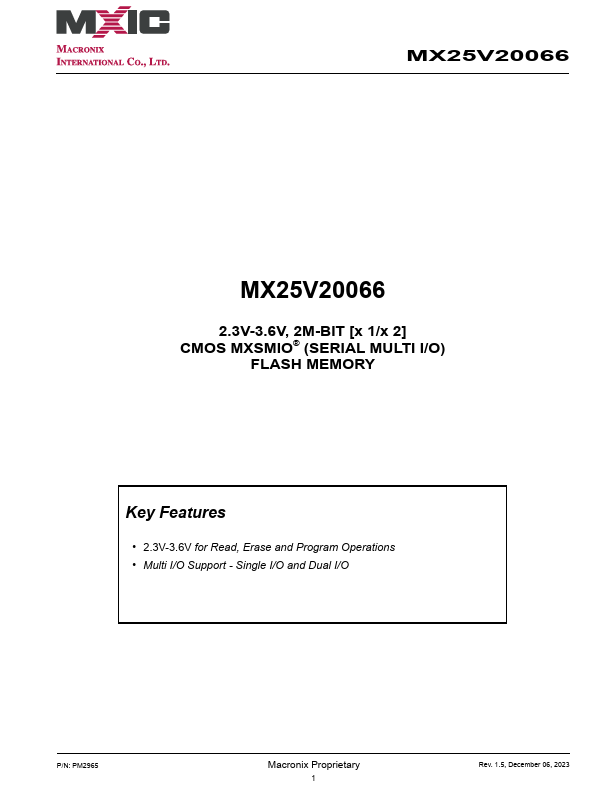

MX25V20066
Features
- 2.3V-3.6V for Read, Erase and Program Operations
- Multi I/O Support
- Single I/O and Dual I/O
P/N: PM2965
Macronix Proprietary
Rev. 1.5, December 06, 2023

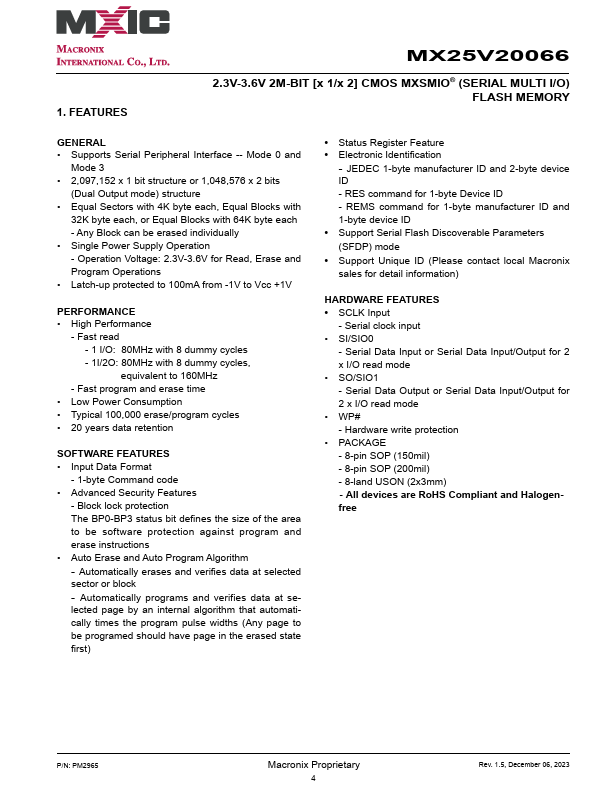

1. FEATURES
2.3V-3.6V 2M-BIT [x 1/x 2] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 2,097,152 x 1 bit structure or 1,048,576 x 2 bits
(Dual Output mode) structure
- Equal Sectors with 4K byte each, Equal Blocks with
32K byte each, or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- Operation Voltage: 2.3V-3.6V for Read, Erase and Program Operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast read
- 1 I/O: 80MHz with 8 dummy cycles
- 1I/2O: 80MHz with 8 dummy cycles,
equivalent to 160MHz
- Fast program and erase time
- Low Power Consumption
- Typical 100,000 erase/program cycles
- 20 years data...
