MX25V2033F - FLASH MEMORY

Datasheet Summary

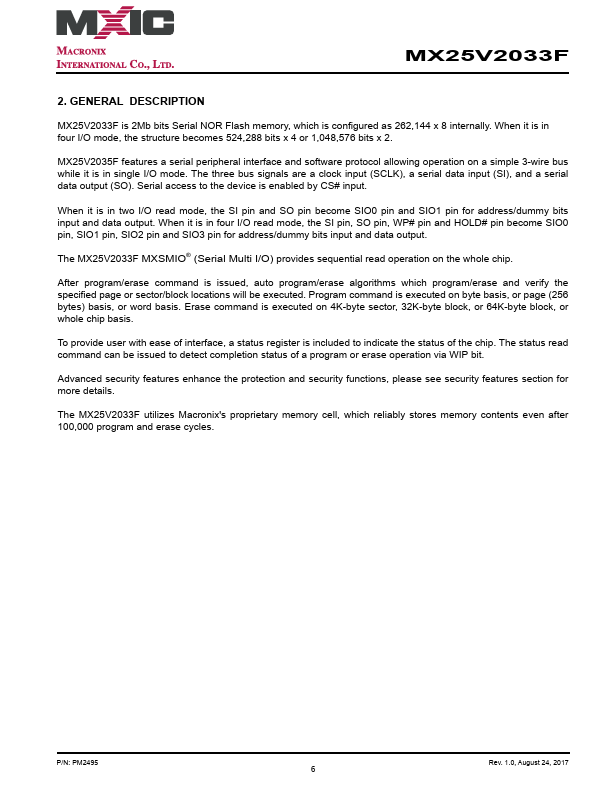

Description

6 3.

PIN CONFIGURATIONS 7 4.

PIN DESCRIPTION 7 5.

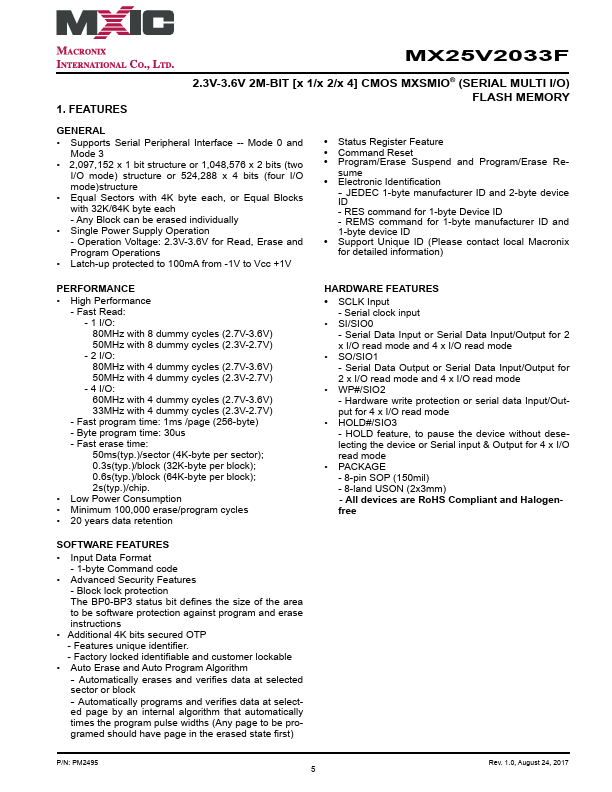

Features

2.3V-3.6V for Read, Erase and Program Operations.
Unique ID Data (UID) Support.
Multi I/O Support - Single I/O, Dual I/O and Quad I/O.
Additional 4K bits secured OTP.
HOLD.

MACRONIX

📥 Download Datasheet

Datasheet Details

Part number	MX25V2033F
Manufacturer	MACRONIX
File Size	1.84 MB
Description	FLASH MEMORY
Datasheet	MX25V2033F Datasheet
Additional preview pages of the MX25V2033F datasheet.

📁 Similar Datasheet

MX25V4035 - FLASH MEMORY (Macronix International)
MX25V8005 - FLASH MEMORY (Macronix International)
MX25V8035 - FLASH MEMORY (Macronix International)
MX25924 - 12V electronic fuse (MAXINMICRO)
MX25947 - 24V electronic fuse (MAXINMICRO)
MX25L1005 - 1M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
MX25L1021E - 512K-BIT [x 1] CMOS SERIAL FLASH Memory (Macronix International)
MX25L1025C - 1M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
MX25L12805D - 128M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
MX25L12845E - 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY (Macronix International)

Other Datasheets by MACRONIX

MX25V2006E - 2M-BIT [x 1/x 2] CMOS SERIAL FLASH
MX25V1006E - 1M-BIT [x 1/x 2] CMOS SERIAL FLASH
MX25V1635F - FLASH MEMORY
MX25V4005C - FLASH MEMORY
MX25V4006E - 4M-BIT [x 1/x 2] CMOS SERIAL FLASH
MX25V512 - 512K-BIT [x 1] 2.5V CMOS SERIAL FLASH
MX25V512C - 512K-BIT [x 1] 2.5V CMOS SERIAL FLASH
MX25V512E - 512K-BIT [x 1/x 2] CMOS SERIAL FLASH

Full PDF Text Transcription

Click to expand full text

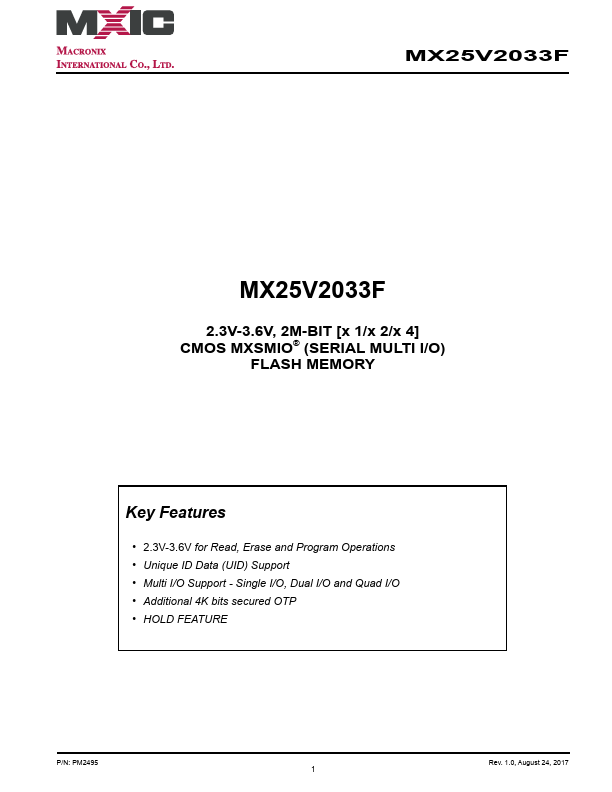

MX25V2033F MX25V2033F 2.3V-3.6V, 2M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • 2.3V-3.6V for Read, Erase and Program Operations • Unique ID Data (UID) Support • Multi I/O Support - Single I/O, Dual I/O and Quad I/O • Additional 4K bits secured OTP • HOLD FEATURE P/N: PM2495 Rev. 1.0, August 24, 2017 1 MX25V2033F Contents 1. FEATURES............................................................................................................................................................... 5 2. GENERAL DESCRIPTION...................................................................................................................................... 6 3. PIN CONFIGURATIONS ...................................................................................
