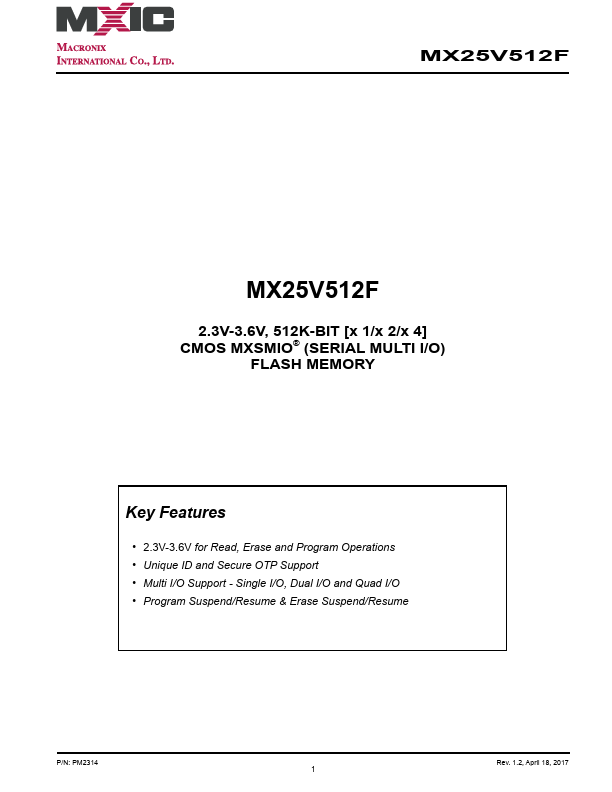

MX25V512F
Features
- 2.3V-3.6V for Read, Erase and Program Operations
- Unique ID and Secure OTP Support
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2314
Rev. 1.2, April 18, 2017 1

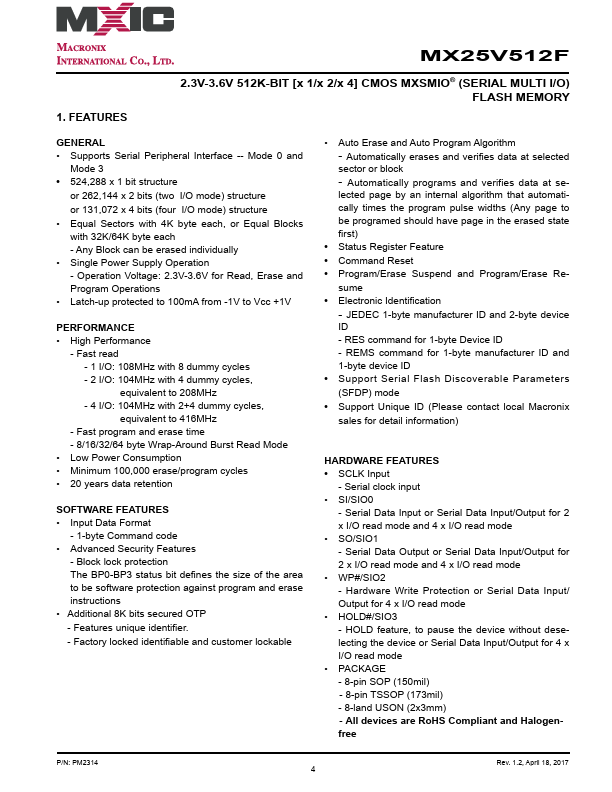

1. FEATURES
2.3V-3.6V 512K-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 524,288 x 1 bit structure or 262,144 x 2 bits (two I/O mode) structure or 131,072 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- Operation Voltage: 2.3V-3.6V for Read, Erase and Program Operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast read
- 1 I/O: 108MHz with 8 dummy cycles
- 2 I/O: 104MHz with 4 dummy cycles,
equivalent to 208MHz
- 4 I/O: 104MHz with 2+4 dummy cycles,...
