MX29GL256F
MX29GL256F is SINGLE VOLTAGE 3V ONLY FLASH MEMORY manufactured by Macronix.

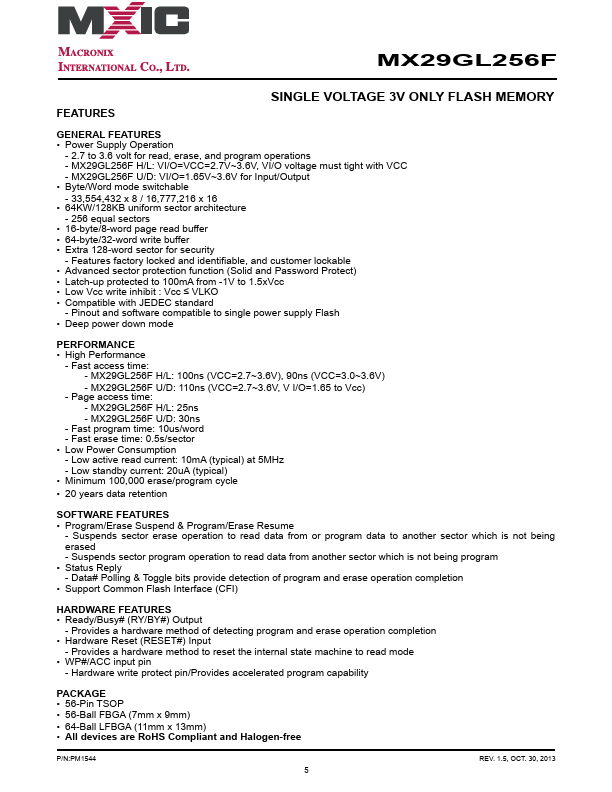

FEATURES
SINGLE VOLTAGE 3V ONLY FLASH MEMORY
GENERAL FEATURES
- Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- MX29GL256F H/L: VI/O=VCC=2.7V~3.6V, VI/O voltage must tight with VCC
- MX29GL256F U/D: VI/O=1.65V~3.6V for Input/Output
- Byte/Word mode switchable
- 33,554,432 x 8 / 16,777,216 x 16
- 64KW/128KB uniform sector architecture
- 256 equal sectors
- 16-byte/8-word page read buffer
- 64-byte/32-word write buffer
- Extra 128-word sector for security
- Features factory locked and identifiable, and customer lockable
- Advanced sector protection function (Solid and Password Protect)
- Latch-up protected to 100m A from -1V to 1.5x Vcc
- Low Vcc write inhibit : Vcc ≤ VLKO
- patible with JEDEC standard
- Pinout and software patible to single power supply Flash
- Deep power down mode
PERFORMANCE
- High Performance
- Fast access time:
- MX29GL256F H/L: 100ns (VCC=2.7~3.6V), 90ns (VCC=3.0~3.6V)
- MX29GL256F U/D: 110ns (VCC=2.7~3.6V, V I/O=1.65 to Vcc)
- Page access time:
- MX29GL256F H/L: 25ns
- MX29GL256F U/D: 30ns
- Fast program time: 10us/word
- Fast erase time: 0.5s/sector
- Low Power Consumption
- Low active read current: 10m A (typical) at 5MHz
- Low standby current: 20u A (typical)
- Minimum 100,000 erase/program cycle
- 20 years data retention
SOFTWARE...
