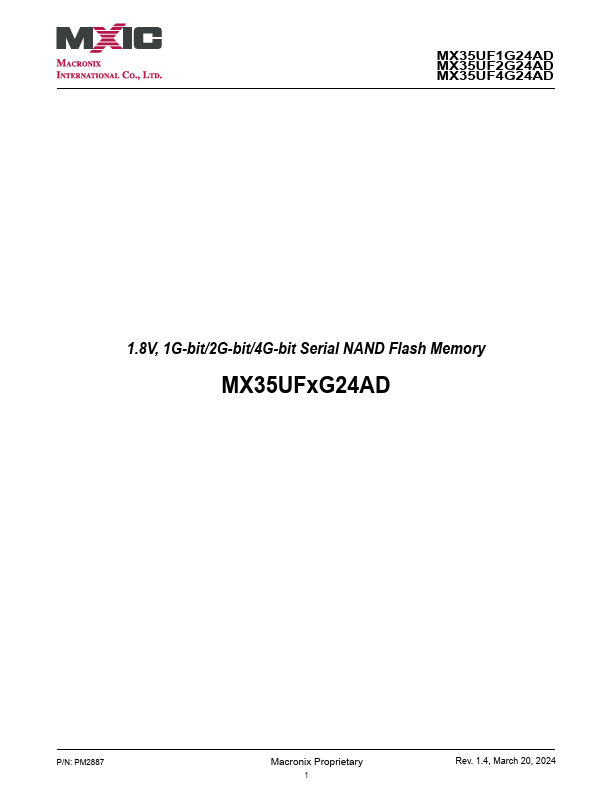

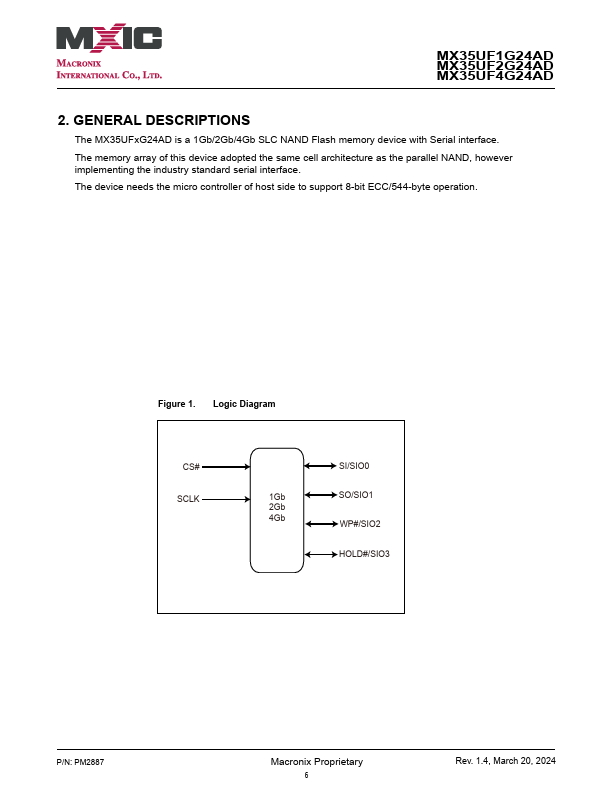

MX35UF2G24AD Description
Macronix NAND Flash devices are available in different configurations and densities. Verify valid part numbers by using Macronix’s product search at http://.Macronix..

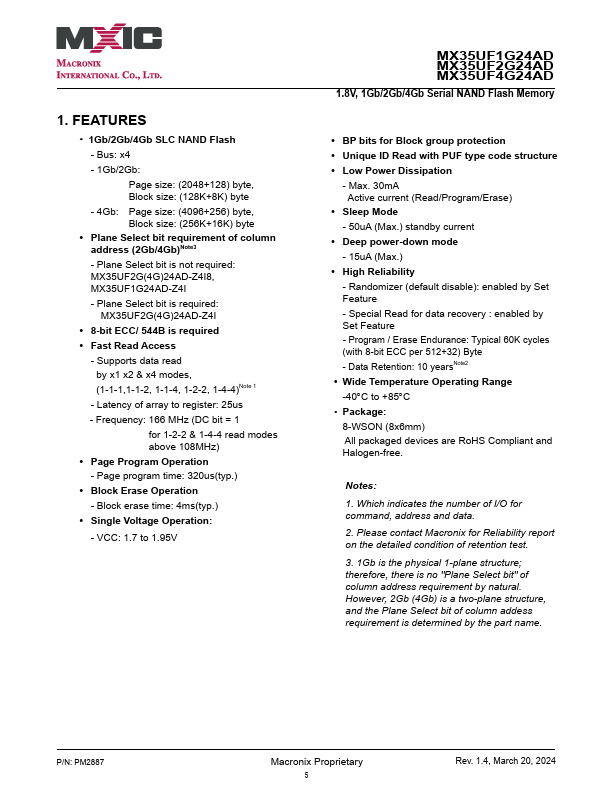

MX35UF2G24AD Key Features
- 1Gb/2Gb/4Gb SLC NAND Flash
- Bus: x4
- 1Gb/2Gb
- 4Gb: Page size: (4096+256) byte
- Plane Select bit requirement of column address (2Gb/4Gb)Note3
- Plane Select bit is not required: MX35UF2G(4G)24AD-Z4I8, MX35UF1G24AD-Z4I
- Plane Select bit is required: MX35UF2G(4G)24AD-Z4I
- 8-bit ECC/ 544B is required
- Fast Read Access
- Supports data read
