MX35UF4G24AD

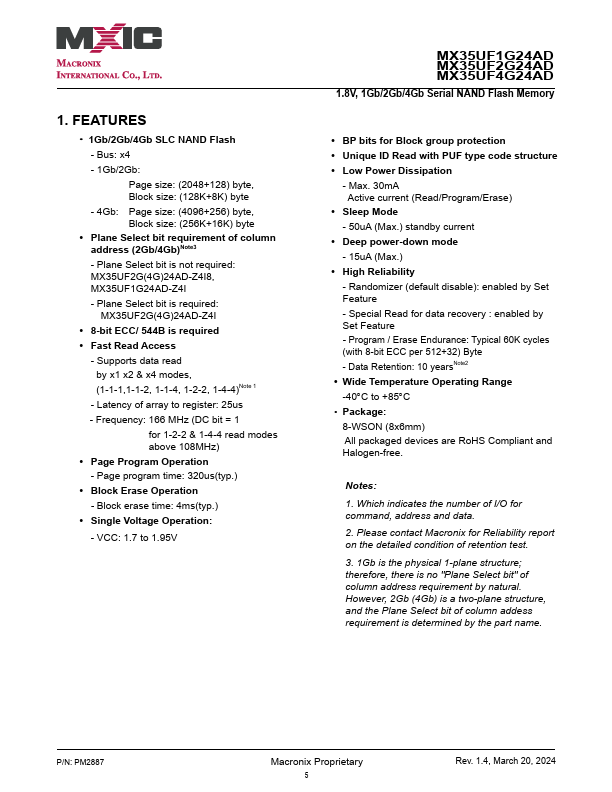

FEATURES
- 1Gb/2Gb/4Gb SLC NAND Flash
- Bus: x4
- 1Gb/2Gb:
Page size: (2048+128) byte,
Block size: (128K+8K) byte
- 4Gb: Page size: (4096+256) byte,
Block size: (256K+16K) byte
- Plane Select bit requirement of column address (2Gb/4Gb)Note3
- Plane Select bit is not required: MX35UF2G(4G)24AD-Z4I8, MX35UF1G24AD-Z4I
- Plane Select bit is required: MX35UF2G(4G)24AD-Z4I
- 8-bit ECC/ 544B is required
- Fast Read Access
- Supports data read by x1 x2 & x4 modes, (1-1-1,1-1-2, 1-1-4, 1-2-2, 1-4-4)Note 1
- Latency of array to register: 25us
- Frequency: 166 MHz (DC bit = 1
for 1-2-2 & 1-4-4 read modes above 108MHz)
- Page Program Operation
- Page program time: 320us(typ.)
- Block Erase Operation
- Block erase time: 4ms(typ.)
- Single Voltage Operation:
- VCC: 1.7 to 1.95V
MX35UF1G24AD MX35UF2G24AD MX35UF4G24AD 1.8V, 1Gb/2Gb/4Gb Serial NAND Flash Memory
- BP bits for Block group protection
- Unique ID Read with PUF type code structure
- Low Power...
