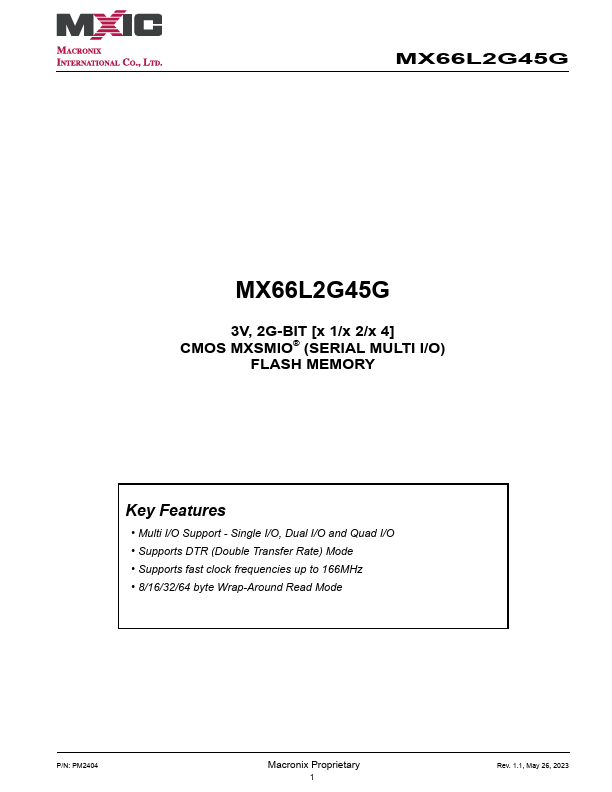

MX66L2G45G
Features
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Supports DTR (Double Transfer Rate) Mode
- Supports fast clock frequencies up to 166MHz
- 8/16/32/64 byte Wrap-Around Read Mode
P/N: PM2404
Macronix Proprietary
Rev. 1.1, May 26, 2023

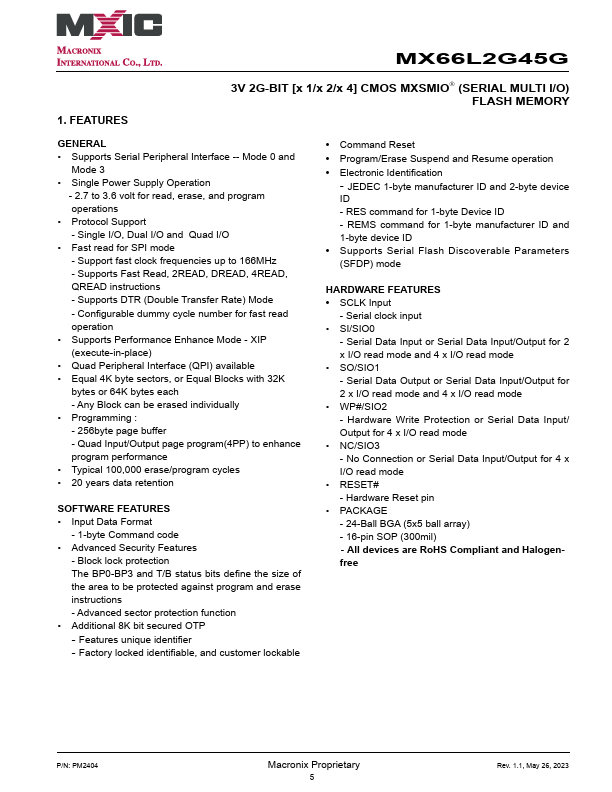

1. FEATURES
3V 2G-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Fast read for SPI mode
- Support fast clock frequencies up to 166MHz
- Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Supports DTR (Double Transfer Rate) Mode
- Configurable dummy cycle number for fast read operation
- Supports Performance Enhance Mode
- XIP (execute-in-place)
- Quad Peripheral Interface (QPI) available
- Equal 4K byte sectors, or Equal Blocks with 32K bytes or 64K bytes each
- Any Block can be...
