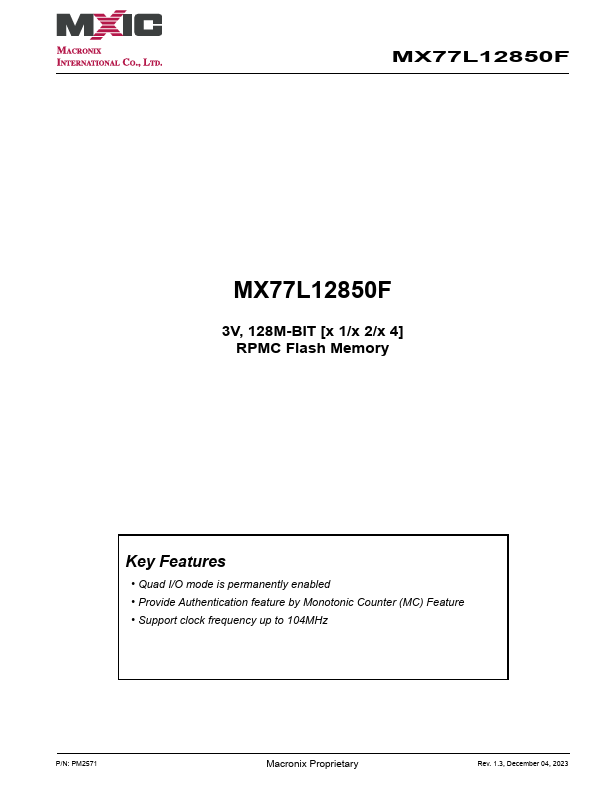

MX77L12850F
Features
- Quad I/O mode is permanently enabled
- Provide Authentication feature by Monotonic Counter (MC) Feature
- Support clock frequency up to 104MHz
P/N: PM2571
Macronix Proprietary
Rev. 1.3, December 04, 2023

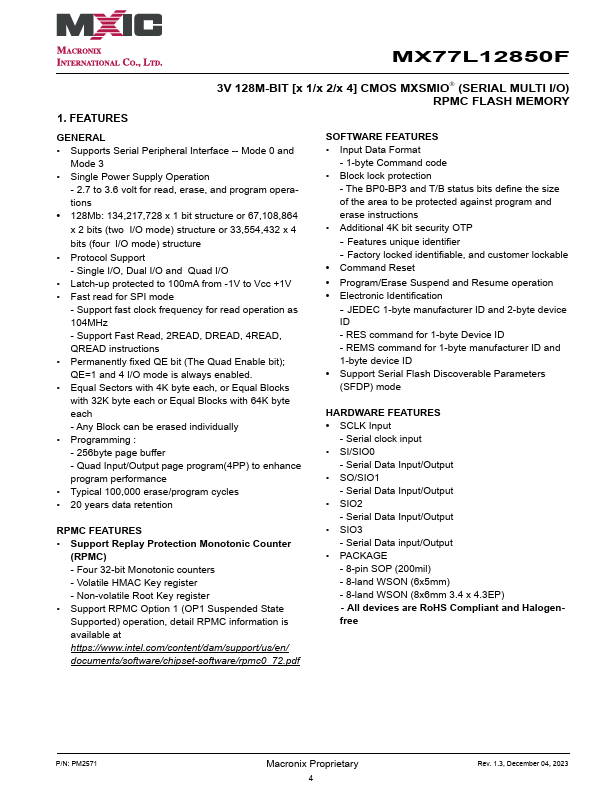

1. FEATURES
3V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) RPMC FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- 128Mb: 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast read for SPI mode
- Support fast clock frequency for read operation as 104MHz
- Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Permanently fixed QE bit (The Quad Enable bit); QE=1 and 4 I/O mode is always enabled.
- Equal Sectors with 4K byte each, or Equal...
