MAX220 - +5V-Powered Multichannel RS-232 Drivers/Receivers

General Description

The MAX220

MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.

Key Features

  • Saves Board Space.
  • Integrated Charge Pump Circuitry.
  • Eliminates the Need for a Bipolar ±12V Supply.
  • Enables Single Supply Operation from +5V Supply.
  • Integrated Capacitors (MAX223, MAX233, MAX235, MAX245.
  • MAX247) Saves Power for Reduced Power Requirements.

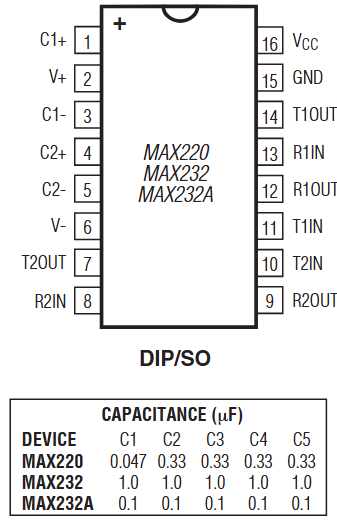

  • 5μW Shutdown Mode Ordering Information and Selection Table appears at end of data sheet. AutoShutdown and UCSP are trademarks of Maxim Integrated Products, Inc. MAX220/MAX232/MAX232A Pin.
