2SA1736 - PNP Silicon Power Transistors

Key Features

  • Low saturation voltage: VCE(sat) =0.5V(Max. ) (IC=1.5A).
  • High speed switching: tstg=0.2us(Typ. ).
  • Small flat package.
  • PC=1~2W (Mounted on ceramic substrate).
  • Complementary to 2SC4541.
  • Marking : LD x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Maximum Ratings Symbol Rating Rating Unit VCEO Collector-Emitter Voltage 50 V VCBO Collector-Base Voltage 60 V VEBO Emitter-Base Voltage 6.0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1736 PNP Transistor Toshiba Semiconductor
2SA1736 PNP Transistor GME
2SA1736 PNP Transistors Kexin
2SA1736-HF PNP Transistors Kexin
2SA1730 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Micro Commercial Components

Part Number Description
2SA1774-Q PNP Transistor
2SA1774-R PNP Transistor
2SA1774-S PNP Transistor
2SA1797-P PNP Silicon Power Transistors
2SA1797-Q PNP Silicon Power Transistors

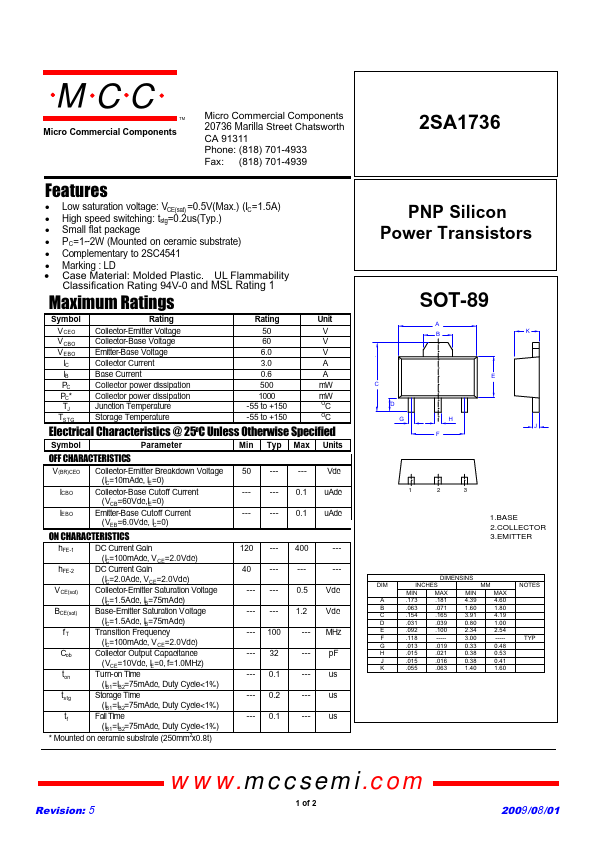

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Low saturation voltage: VCE(sat) =0.5V(Max.) (IC=1.5A) • High speed switching: tstg=0.2us(Typ.) • Small flat package • PC=1~2W (Mounted on ceramic substrate) • Complementary to 2SC4541 • Marking : LD x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Maximum Ratings Symbol Rating Rating Unit VCEO Collector-Emitter Voltage 50 V VCBO Collector-Base Voltage 60 V VEBO Emitter-Base Voltage 6.0 V IC Collector Current 3.0 A IB Base Current 0.
