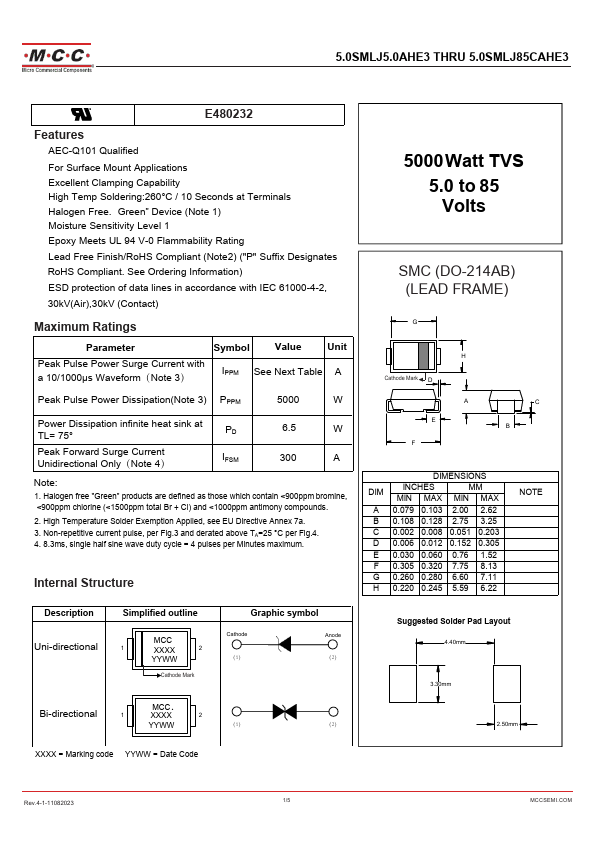

5.0SMLJ13AHE3 Datasheet | Micro Commercial Components

Features - AEC-Q101 Qualified - For Surface Mount Applications - Excellent Clamping Capability - High Temp Soldering:260°C / 10 Seconds at Terminals - Halogen Free. “Green” Device (Note 1) - Moisture Sensitivity Level 1 - Epoxy Meets UL 94 V-0 Flammability Rating - Lead Free Finish/Ro HS pliant (Note2) ("P" Suffix Designates Ro HS pliant. See Ordering Information) - ESD protection of data lines in accordance with IEC 61000-4-2, 30k V(Air),30k V (Contact) Maximum Ratings Parameter Symbol Value Unit Peak Pulse Power Surge Current with a 10/1000μs Waveform（Note 3） IPPM See Next Table A Peak Pulse Power Dissipation(Note 3) PPPM Power Dissipation infinite heat sink at TL= 75° Peak Forward Surge Current Unidirectional Only（Note 4） IFSM Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 2. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. 3. Non-repetitive current pulse, per Fig.3 and derated above TA=25 °C per Fig.4. 4. 8.3ms, single half sine wave duty cycle = 4 pulses per Minutes maximum. Internal Structure Description Uni-directional Simplified...
