5.0SMLJ16CAHE3 - 5000 Watt TVS

Download the 5.0SMLJ16CAHE3 datasheet PDF (5.0SMLJ5.0AHE3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 5000 watt tvs.

Description

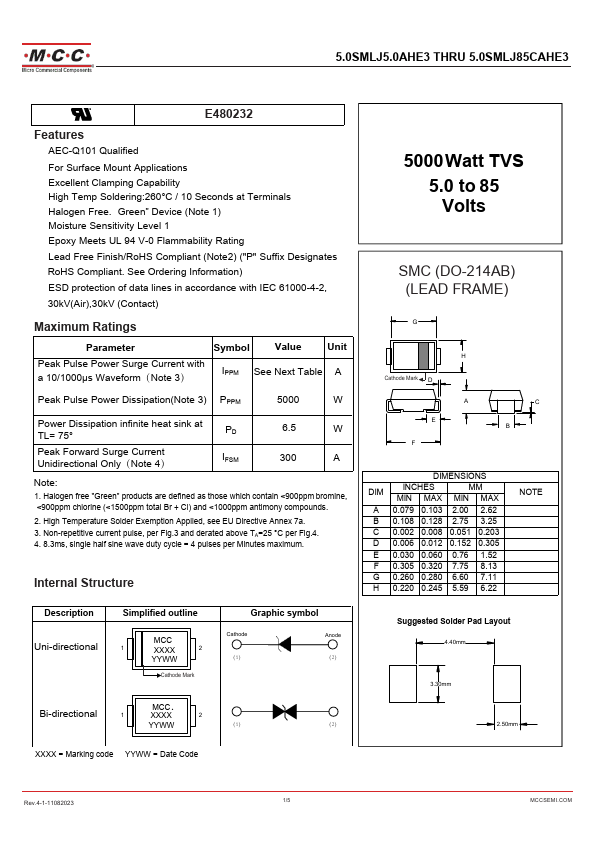

Uni-directional Simplified outline MCC 1 XXXX 2 YYWW Cathode Mark Graphic symbol Cathode Anode （1） （2） Bi-directional 1 XMXCXCX 2 YYWW （1） （2） 5000 Watt TVS 5.0 to 85 Volts SMC (DO-214AB) (LEAD FRAME) G H Cathode Mark D A E F C B DIMENSIONS DIM INCHES MIN MAX MM M

Features

  • AEC-Q101 Qualified.
  • For Surface Mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMLJ5.0AHE3-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 5.0SMLJ16CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ160A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ16A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ100A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ110A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ120A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ12A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ12CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ130A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ13A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
Other Datasheets by MCC

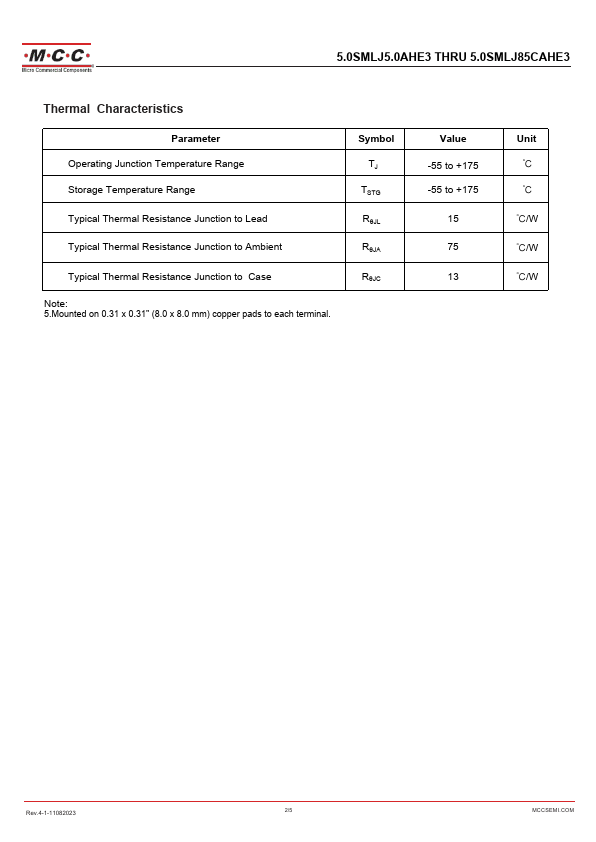

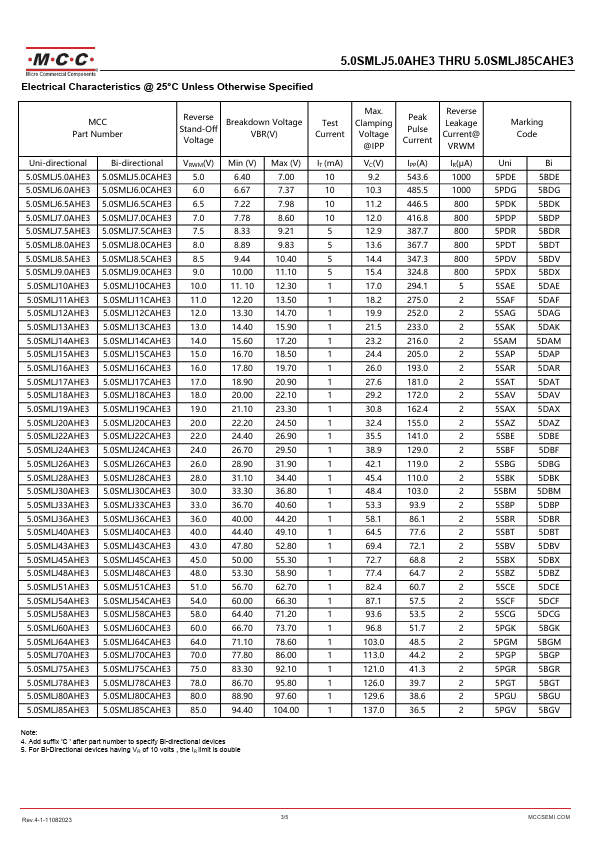

Full PDF Text Transcription

Click to expand full text
5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 E480232 Features • AEC-Q101 Qualified • For Surface Mount Applications • Excellent Clamping Capability • High Temp Soldering:260°C / 10 Seconds at Terminals • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant.
