5.0SMLJ33CAHE3 Overview

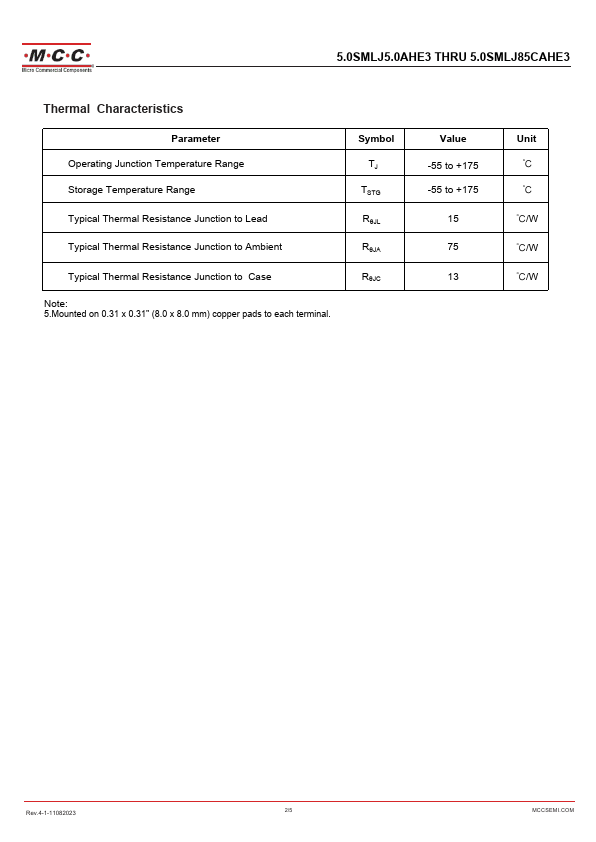

5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 Thermal Characteristics Parameter Operating Junction Temperature Range Storage Temperature Range Typical Junction to Lead Typical Junction to Ambient Typical Junction to Case Note: 5.Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal.

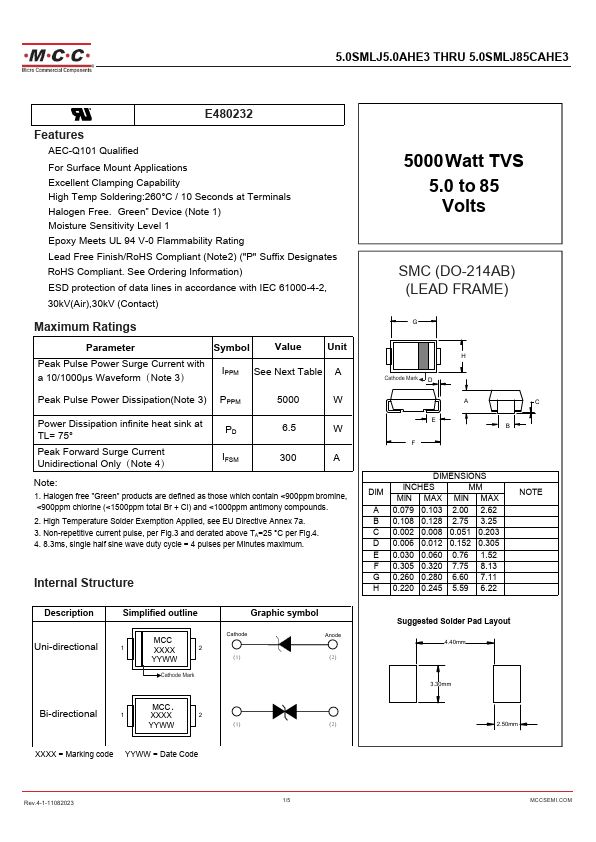

5.0SMLJ33CAHE3 Key Features
- AEC-Q101 Qualified
- For Surface Mount
